  5. LT1461

Data Sheet Rev. C
JP

Overview

Features and Benefits

  • Trimmed to High Accuracy: 0.04% Max
  • Low Drift: 3ppm/°C Max
  • Low Supply Current: 50μA Max
  • High Output Current: 50mA Min
  • Low Dropout Voltage: 300mV Max
  • Excellent Thermal Regulation
  • Power Shutdown
  • Thermal Limiting
  • All Parts Guaranteed Functional from –40°C to 125°C
  • Voltage Options: 2.5V, 3V, 3.3V, 4.096V and 5V
  • AEC-Q100 Qualified for Automotive Applications

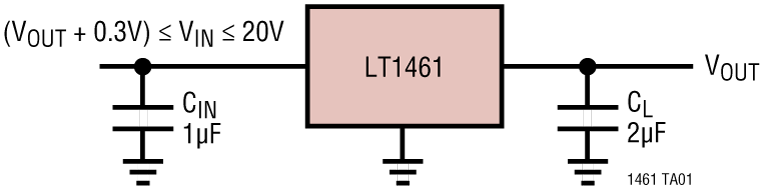

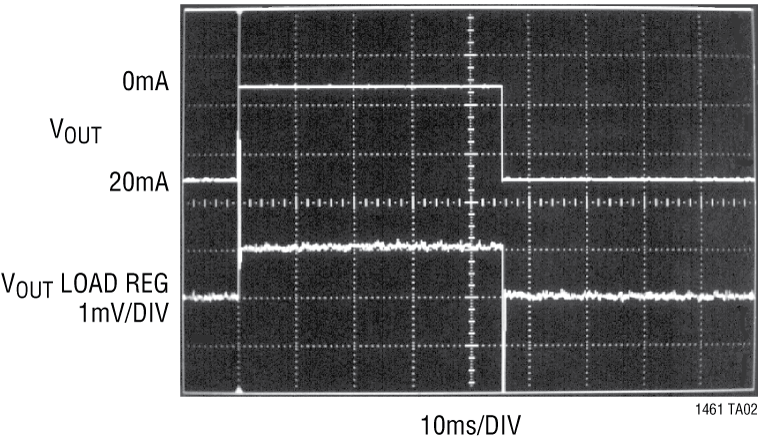

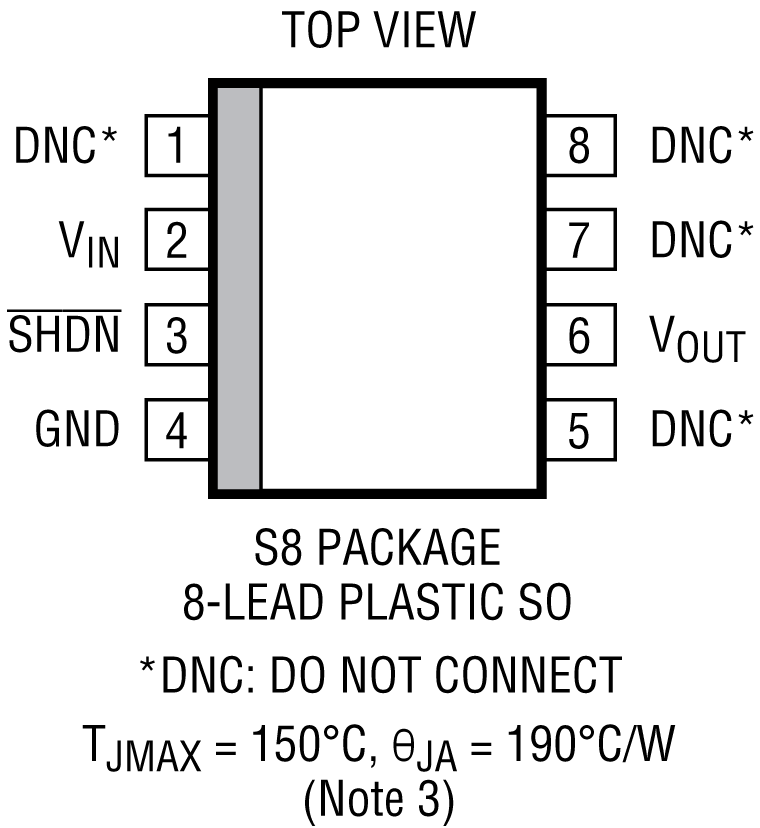

Product Details

The LT1461 is a family of low dropout micropower band-gap references that combine very high accuracy and low drift with low supply current and high output drive. These series references use advanced curvature compensation techniques to obtain low temperature coefficient and trimmed precision thin-film resistors to achieve high output accuracy. The LT1461 family draws only 35μA of supply current, making them ideal for low power and portable applications, however their high 50mA output drive makes them suitable for higher power requirements, such as precision regulators.

In low power applications, a dropout voltage of less than 300mV ensures maximum battery life while maintaining full reference performance. Line regulation is nearly immeasurable, while the exceedingly good load and thermal regulation will not add significantly to system error budgets. The shutdown feature can be used to switch full load currents and can be used for system power down. Thermal shutdown protects the part from overload conditions. The LT1461 is available in 2.5V, 3V, 3.3V 4.096V and 5V options.

Applications

  • A/D and D/A Converters
  • Precision Regulators
  • Handheld Instruments
  • Power Supplies

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Documentation & Resources

  • View All (7)
  • Data Sheets (1)
  • Reliability Data (1)
  • Design Notes (2)
  • Product Selector Card (1)
  • Technical Articles (2)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LT1461-2.5
    LT1461-3
    LT1461-3.3
    LT1461-4.096
    LT1461-5
