Overview
Features and Benefits
- Synchronizable or Constant Frequency Low Noise Output
- Synchronizable Up to 4.5MHz
- Wide Input Voltage Range: 2.8V to 18V
- Low Profile Surface Mount Solution (All Ceramic Capacitors)
- Low VCESAT Switch: 240mV at 1A
- Adjustable Output from VIN to 35V
- Small Thermally Enhanced 10-Lead MSOP Package
Product Details

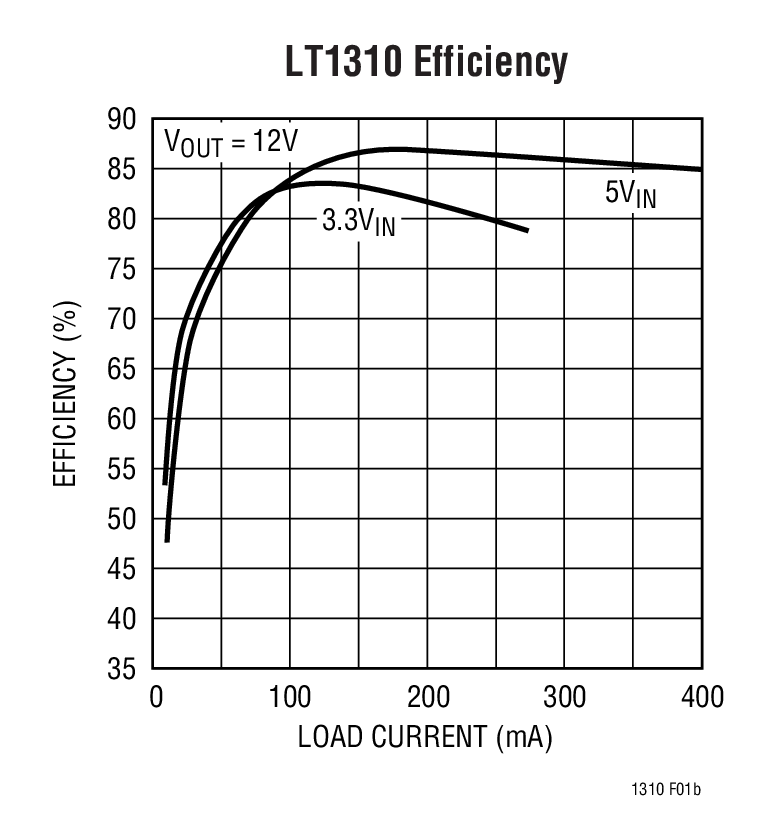

The LT1310 boost DC/DC converter combines a 1.5A current mode PWM switcher with an integrated phase-locked loop, allowing the user to set the switching frequency anywhere from 10kHz to 4.5MHz. Intended for use in applications where switching frequency must be accurately controlled, the LT1310 can generate 12V at up to 400mA from a 5V input.
Switching frequency is set with an external capacitor, and the device can be operated in either free-running or phase-locked mode. A wide capture range of nearly 2:1 allows the free-running frequency to be set using standard ±10% tolerance NP0 dielectric capacitors.

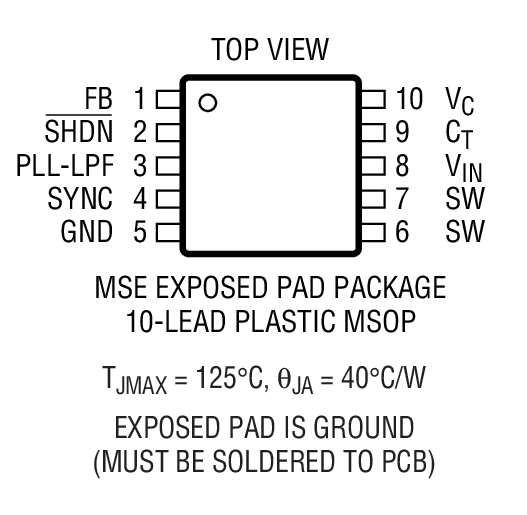

The LT1310 is available in the tiny thermally enhanced 10-lead MSOP package.
Applications
- Instruments
- Avionics
- Data Acquisition
- Communications
- Imaging
- Ultrasound
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
