LT1129

PRODUCTION

Micropower Low Dropout Regulators with Shutdown

Part Models: 44
1ku List Price: Starting From $3.17

Viewing:

Overview

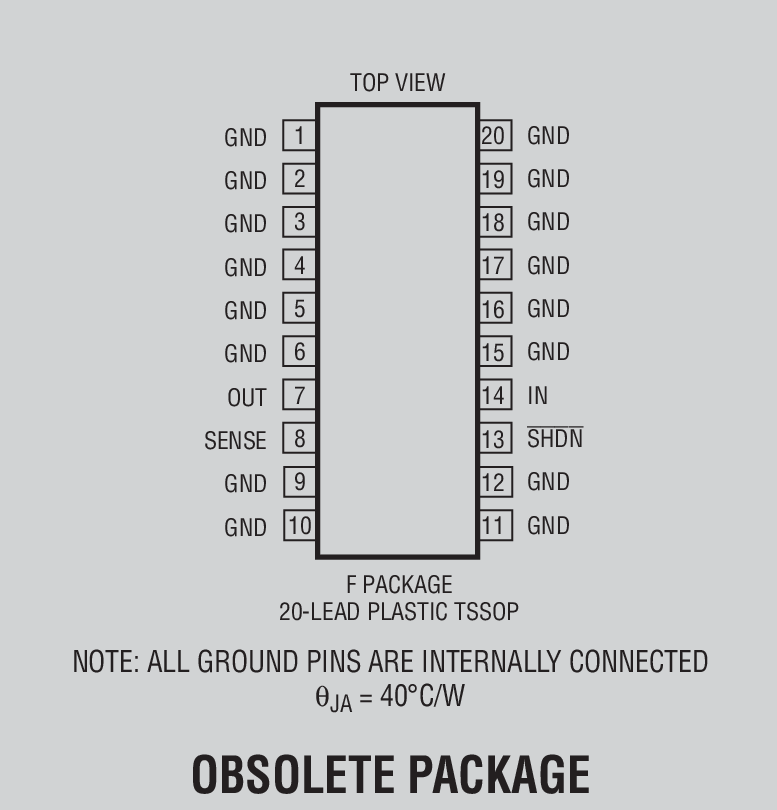

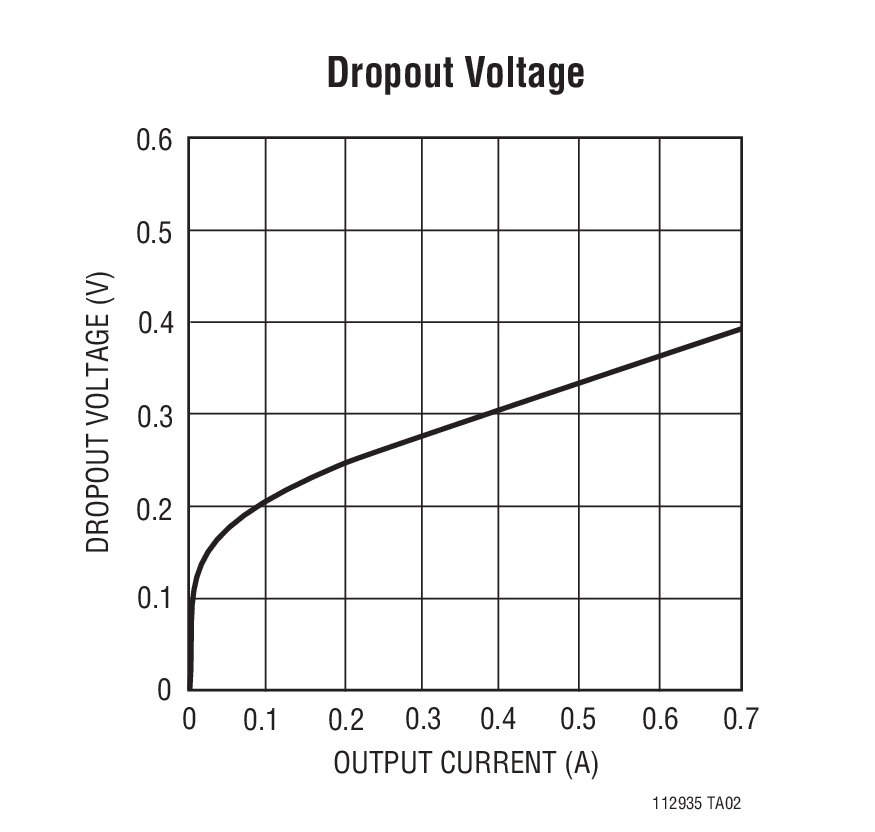

400mV Dropout Voltage
700mA Output Current
50μA Quiescent Current
No Protection Diodes Needed
Adjustable Output from 3.8V to 30V
3.3V and 5V Fixed Output Voltages
Controlled Quiescent Current in Dropout

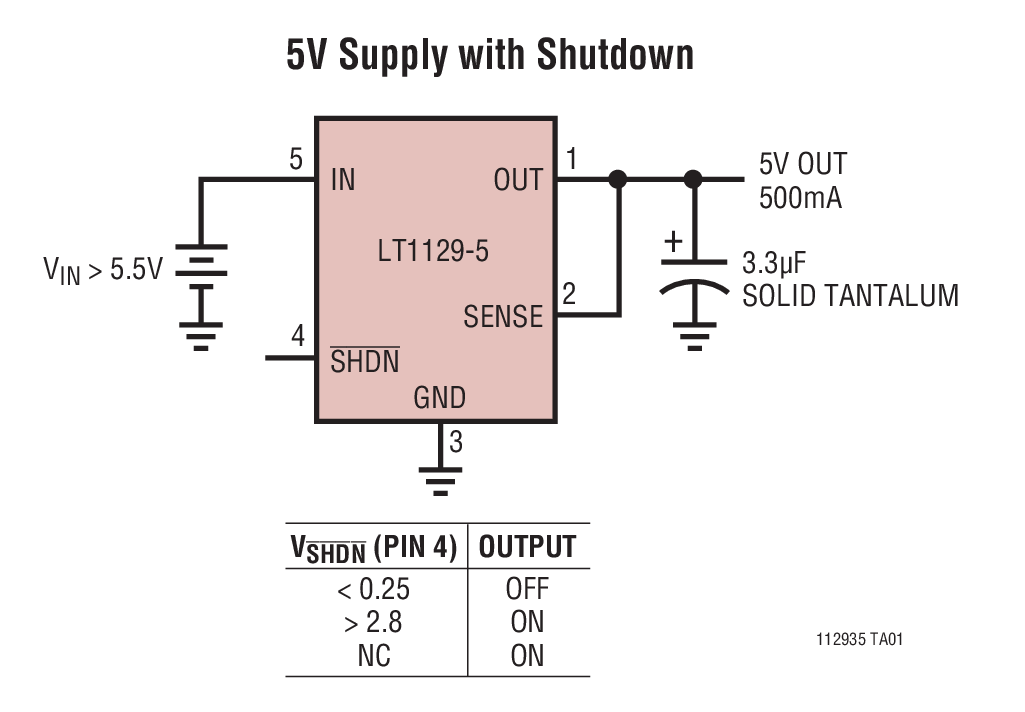

Shutdown
16μA Quiescent Current in Shutdown
Stable with 3.3μF Output Capacitor
Reverse Battery Protection
No Reverse Output Current
Thermal Limiting
Surface Mount SOT-223 and DD-Pak Packages

The LT1129/LT1129-3.3/LT1129-5 are micropower low dropout regulators with shutdown. The devices are capable of supplying 700mA of output current with a dropout voltage of 400mV at maximum output. Designed for use in battery-powered systems, the low quiescent current, 50μA operating and 16μA in shutdown, make them an ideal choice. The quiescent current does not rise in dropout as it does with many other low dropout PNP regulators.

Other features of the LT1129/LT1129-3.3/LT1129-5 include the ability to operate with small output capacitors. They are stable with only 3.3μF on the output while most older devices require between 10μF and 100μF for stability. Also the input may be connected to ground or a reverse voltage without reverse current ﬂow from output to input. This makes the LT1129/LT1129-3.3/LT1129-5 ideal for backup power situations where the output is held high and the input is at ground or reversed. Under these conditions, only 16μA will ﬂow from the output pin to ground. The devices are available in 5-lead TO-220, 5-lead DD-Pak and 3-lead SOT-223 packages.

Applications

Low Current Regulator
Regulator for Battery-Powered Systems
Post Regulator for Switching Supplies
5V to 3.3V Logic Regulator

Part Models: 44
1ku List Price: Starting From $3.17

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

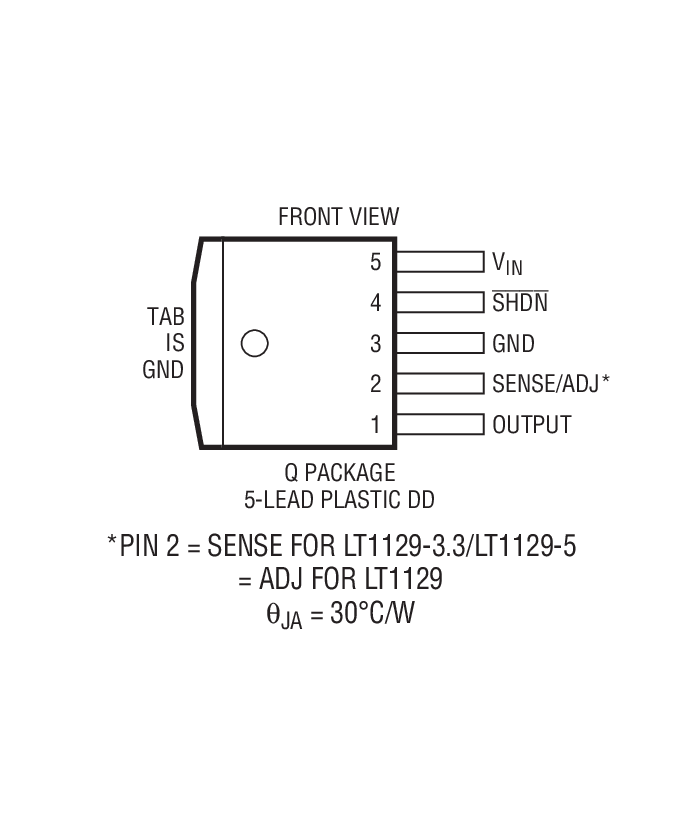

LT1129CQ#PBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CQ#TRPBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CQ-3.3#PBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CQ-3.3#TRPBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CQ-5#PBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CQ-5#TRPBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

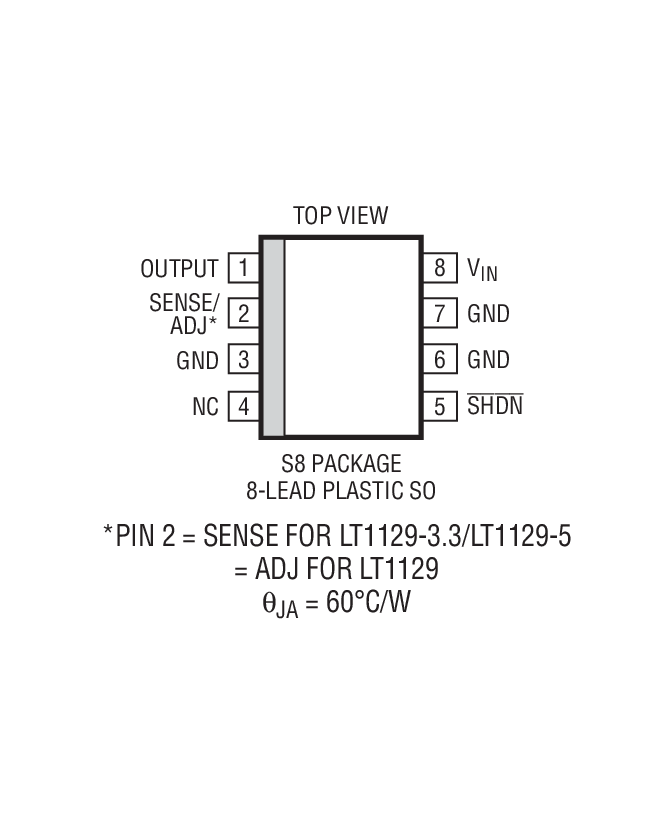

LT1129CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CS8-3.3#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CS8-3.3#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

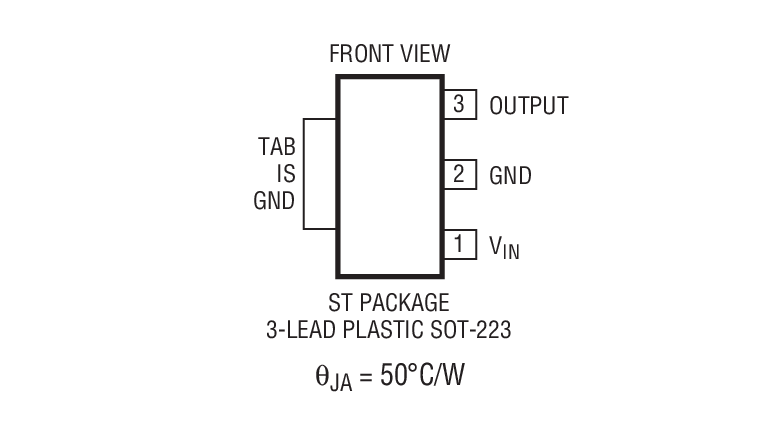

LT1129CST-3.3#PBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CST-3.3#TRPBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CST-5#PBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CST-5#TRPBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

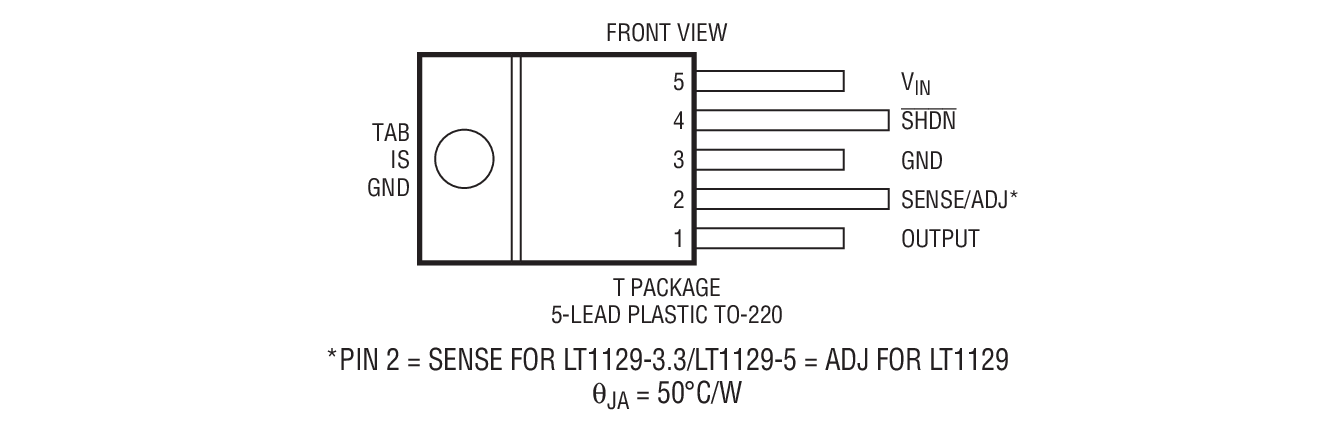

LT1129CT#PBF	5-Lead TO-220	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CT-3.3#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CT-3.3#PBF	5-Lead TO-220	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CT-5#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129CT-5#PBF	5-Lead TO-220	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IQ#PBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IQ#TRPBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IQ-3.3#PBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IQ-3.3#TRPBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IQ-5#PBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IQ-5#TRPBF	5-Lead DD Pak	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IS8-3.3#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IS8-3.3#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IST-3.3#PBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IST-3.3#TRPBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IST-5#PBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IST-5#TRPBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IT#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IT#PBF	5-Lead TO-220	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IT-3.3#PBF	5-Lead TO-220	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IT-5#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129IT-5#PBF	5-Lead TO-220	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129MPST-3.3#PBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1129MPST-3.3#TRPBF	3-Lead SOT-223	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
