LT1027
PRODUCTIONPrecision 5 Volt Reference
- Part Models
- 10
- 1ku List Price
- Starting From $3.42
Overview
- Very Low Drift: 2ppm/°C Max TC
- Pin Compatible with LT1021-5, REF-02, (PDIP Packages)
- Output Sources 15mA, Sinks 10mA
- Excellent Transient Response Suitable for A-to-D Reference Inputs
- Noise Reduction Pin
- Excellent Long Term Stability
- Less Than 1ppm P-P Noise (0.1Hz to 10Hz)
The LT1027 is a precision reference with extra-low drift, superior accuracy, excellent line and load regulation and low output impedance at high frequency. This device is intended for use in 12- to 16-bit A-to-D and D-to-A systems where demanding accuracy requirements must be met without the use of power hungry, heated substrate references. The fast settling output recovers quickly from load transients such as those presented by A-to-D converter reference inputs. The LT1027 brings together both outstanding accuracy and temperature coefficient specifications.
The LT1027 reference is based on LTC’s proprietary advanced subsurface Zener bipolar process which eliminates noise and stability problems associated with surface breakdown devices.

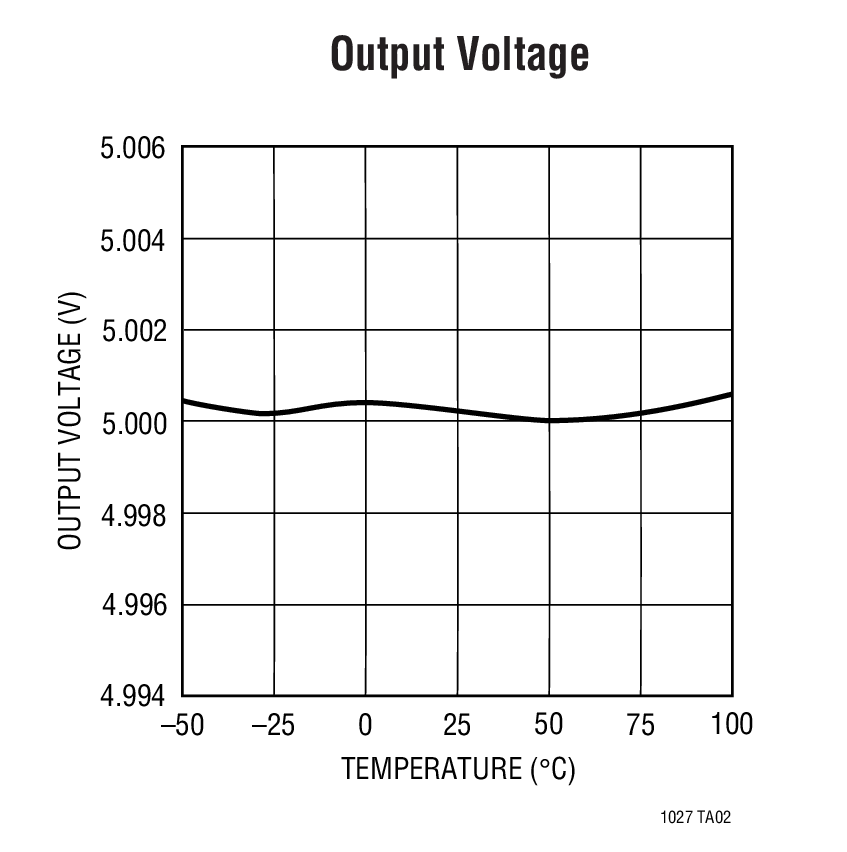

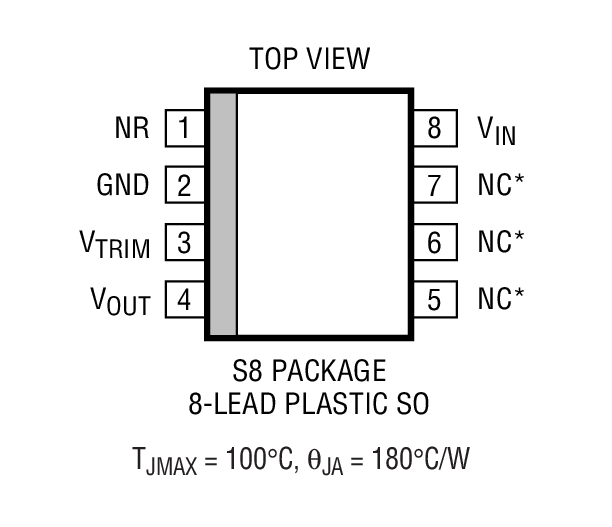

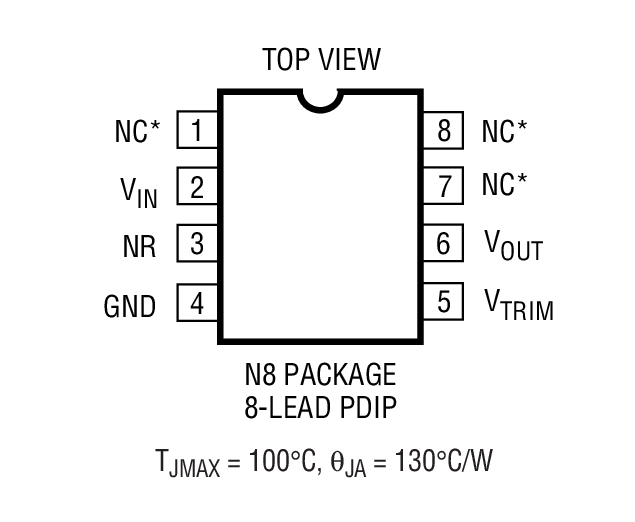

| Package | |
| LT1027 | N-8, S-8 |
| LT1027LS8 | LS8 Hermetic, Low Drift |
Applications
- A-to-D and D-to-A Converters
- Digital Voltmeters
- Reference Standard
- Precision Current Source
Documentation
Data Sheet 1
Reliability Data 1
Application Note 5
Design Note 2
Product Selector Card 1
