Overview
Features and Benefits
- High Current 400mA
- Low Dropout: 300mV at 400mA Output
- Ultra Low Noise: 3nV/√Hz at 10 kHz, 6nV/√Hz at 1 kHz
- High Power Supply Rejection Ratio(PSRR): <60 dB at 1 kHz, <30 dB at 1 MHz
- Adjustable Voltage Output: VR 1.8 to 5V at 400mA
- Works with Low ESR Ceramic Capacitors
- Low Power-Down Current: <1 μA
- Thermal Protection
- 16 Lead 3 x 3 mm SMT Package: 9 mm²
Product Details
The HMC976LP3E is a BiCMOS ultra low noise linear voltage regulator. The high Power Supply Rejection Ratio (PSRR) in the 0.1 MHz to 10 MHz range provides excellent rejection of any preceding switching regulator or other power supply noise. The voltage output is ideal for frequency generation subsystems including Hittite’s broad line of PLLs with integrated VCOs. The output voltage can be adjusted lower than the default value by using one external resistor.
The output can be set to 5V by grounding the HV pin. The regulator can be powered down by the TTL-compatible Enable input. The HMC976LP3E is housed in a 3x3mm QFN SMT package.
Applications
- Test Instrumentation
- Military Radios, Radar and ECM
- Basestation Infrastructure
- Ultra Low Noise Frequency Generation
- Fractional-N Synthesizer Supply
- Mixed-Signal Circuit Supply
Product Categories
Product Lifecycle
Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

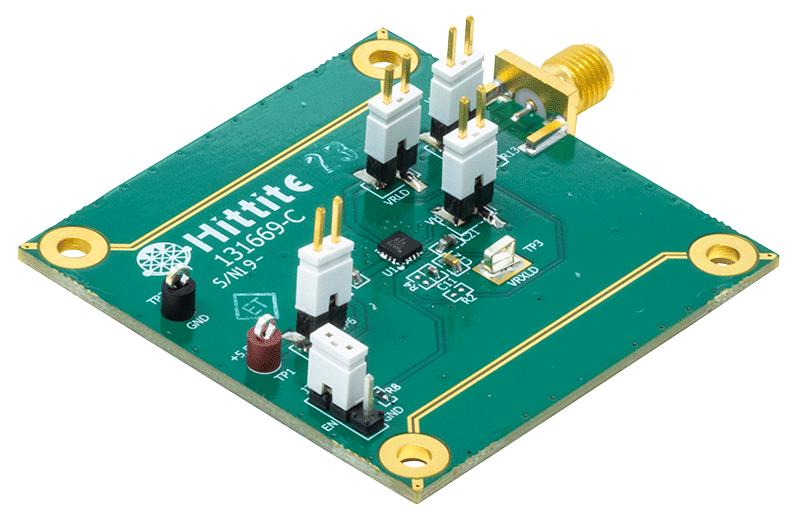

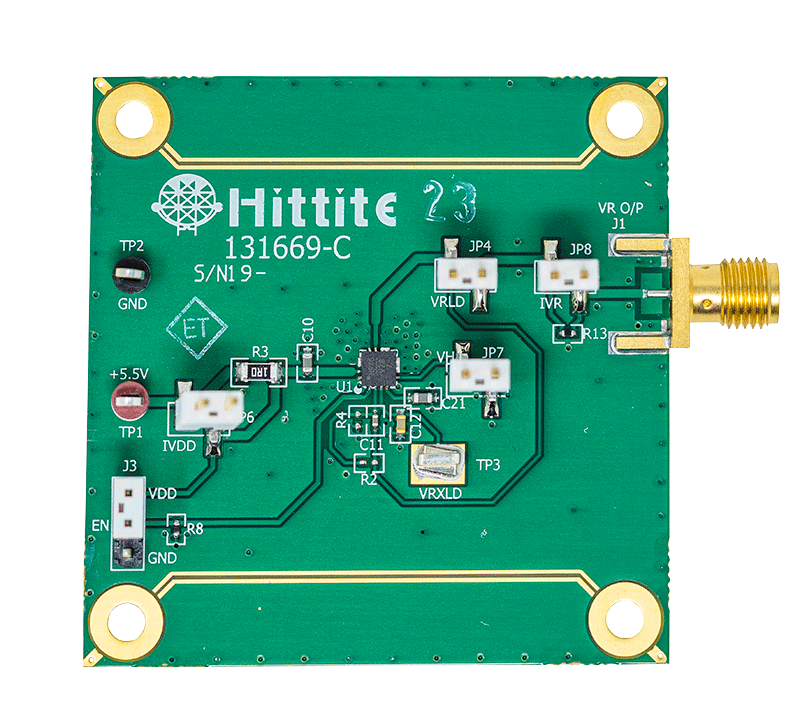

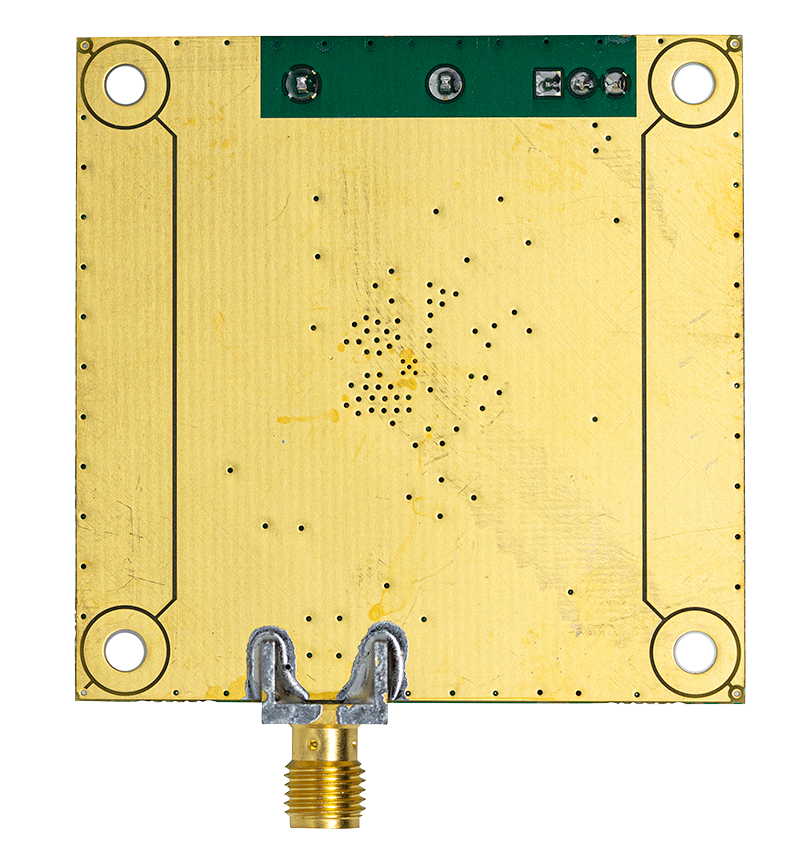

Evaluation Kits (1)
