HMC972
ObsoleteAnalog Variable Gain Amplifier, 0.5 - 6.0 GHz
Part Details
- Wide Gain Control Range: -35 to +15 dB
- High Output IP3: +28 dBm
- Positive Analog Control: 0 to +5V
- Can be Configured with 1 or 2 Attenuators
- 32 Lead 5x5 mm SMT Package: 25 mm²

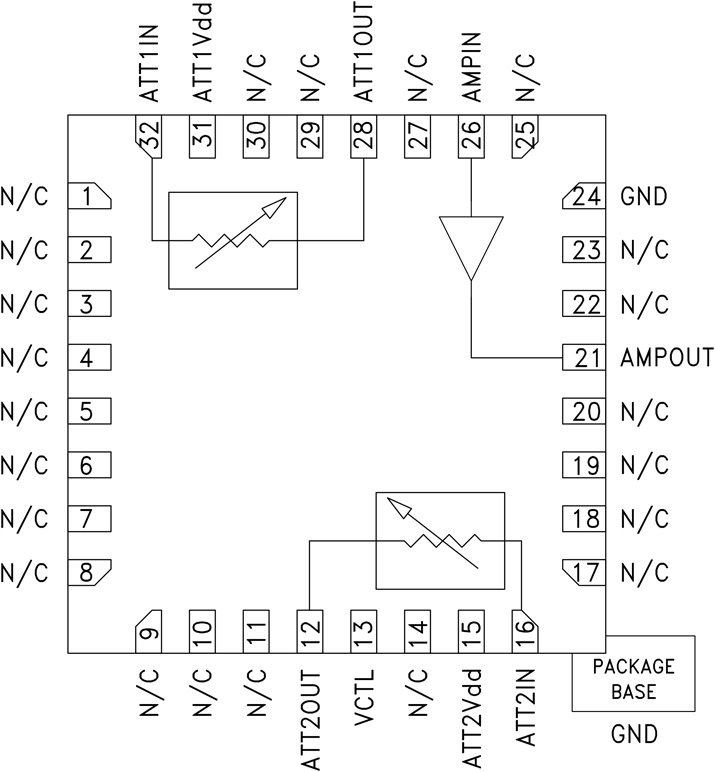

The HMC972LP5E is an analog controlled variable gain amplifier composed of two identical voltage variable attenuators in combination with an InGaP HBT gain block MMIC amplifier which operates from 0.5 to 6 GHz, and can be controlled to provide anywhere from 15 dB of gain to 35 dB of attenuation. The HMC972LP5E delivers noise figure of 7.5 dB in its maximum gain state, with output IP3 of up to +28 dBm. The HMC972LP5E is housed in a RoHS compliant 5x5 mm QFN leadless package, and requires no external matching components.
Applications
- Cellular/3G Infrastructure
- WiBro / WiMAX / 4G
- Microwave Radio & VSAT
- Test Equipment and Sensors
- IF & RF Applications
Suggested Replacement Parts
0.5 dB LSB GaAs MMIC 6-Bit Digital Variable Gain Amplifier, DC - 5 GHz
Documentation
Obsolete Data Sheet 1
Quality Documentation 4
Tape & Reel Specification 1
This is the most up-to-date revision of the Data Sheet.
Evaluation Kits
HMC972LP5E Evaluation Board
