HMC915

Obsolete

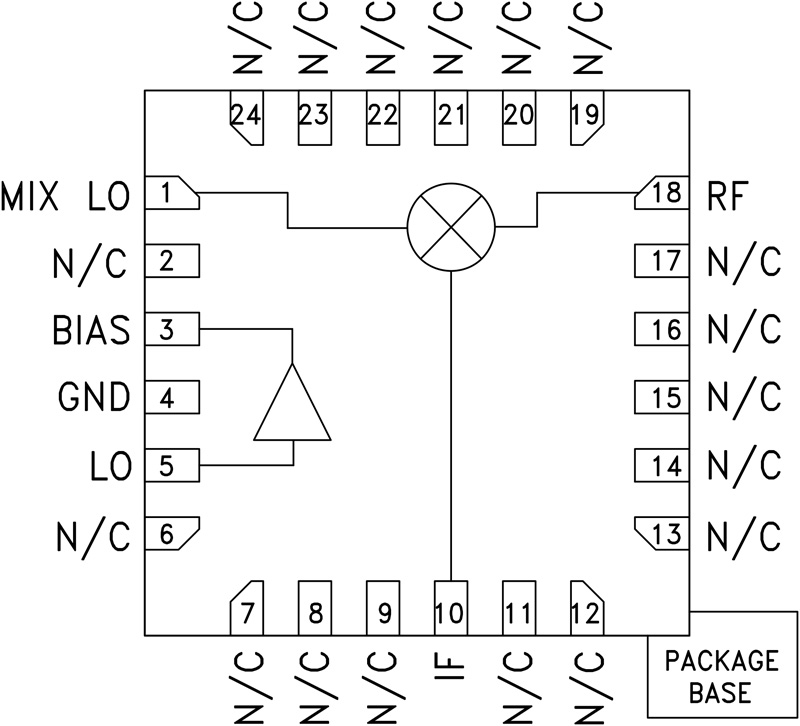

High IP3 DBL-BAL Mixer SMT with Integrated LO Amplifier, 0.5 - 2.7 GHz

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

Input IP3: +28 dBm
Low Input LO Drive:
-2 to +4 dBm
High LO to RF Isolation:
28 dB
Low Conversion Loss: 8 dB

Single Positive Supply: +5V @ 88 mA
24 Lead 4x4mm QFN Package: 16mm²

Part Models: 2
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC915 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC915LP4E	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC915LP4ETR	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC915LP4E	Obsolete
HMC915LP4ETR	Obsolete

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
AD8343	PRODUCTION	DC-to-2.5 GHz High IP3 Active Mixer
AD8342	RECOMMENDED FOR NEW DESIGNS	Active Receive Mixer LF to 3 GHz
ADL5365	Obsolete	1200 MHz TO 2500 MHz Balanced Mixer, LO Buffer and RF Balun
ADL5367	Obsolete	500 MHz TO 1700 MHz Balanced Mixer, LO Buffer and RF Balun
