HMC899 / HMC899LP4E

Filter-Tunable, Band-Pass SMT, 18.5 GHz to 37.0 GHz or 19 GHz to 38 GHz

Data Sheet Product Selection Table

Part Models: 3
1ku List Price: price unavailable

Viewing:

Overview

Fast tuning response
Excellent wideband rejection
Single chip replacement for mechanically tuned designs

Small size: 2.5 × 1.2 × 0.10 mm

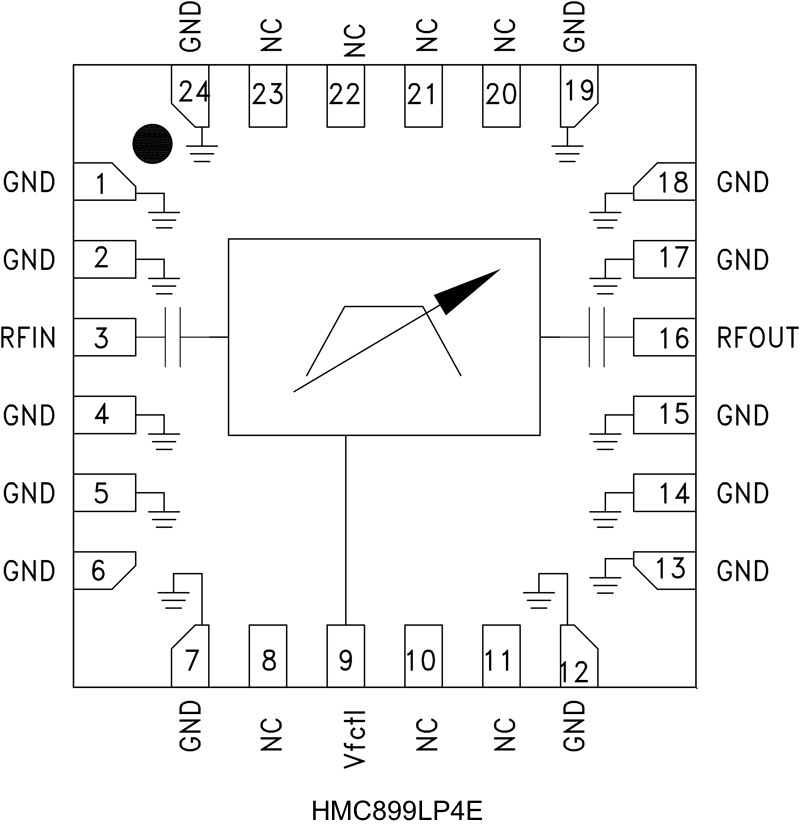

24-lead, 4 × 4 mm, QFN, surface-mount technology (SMT) package

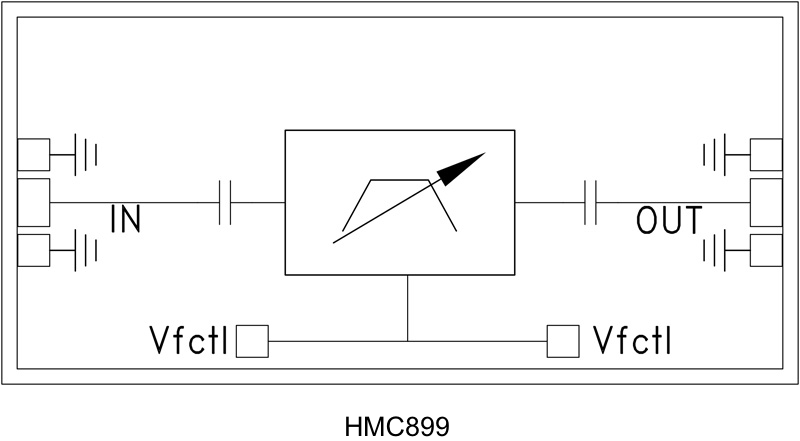

The HMC899 devices are monolithic microwave integrated circuit (MMIC), band-pass filters which feature a user selectable pass-band frequency. The 3 dB filter bandwidth is approximately 18%. The 20 dB filter bandwidth is approximately 35%. The center frequency can be varied between 18.5 GHz and 37.0 GHz or 19 GHz and 38 GHz by applying an analog tune voltage between 0 V and 14 V. These tunable filters can be used as a much smaller alternative to physically large switched filter banks and cavity tuned filters. The HMC899 devices have excellent microphonics due to the monolithic design and provide a dynamically adjustable solution in advanced communications applications.

Applications

Test measurement and equipment
Military radar and EW/ECM
SATCOM and space
Industrial and medical equipment

Part Models: 3
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC899LP4E Data Sheet 04/13/2015

Obsolete Data Sheet 1

HMC899 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC899	DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC899LP4E	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC899LP4ETR	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 6, 2022 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products
		PCN22_0048_Form Material_Report Qualification Results Summary Detailed Change Description
HMC899LP4E
Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC899
HMC899LP4E
HMC899LP4ETR
