HMC892

Obsolete

Filter - Tunable, Band Pass SMT, 4 - 7.7 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Fast Tuning Response;
200 ns
Excellent Wideband Rejection; >30 dB

Single Chip Replacement for Mechanically Tuned Designs

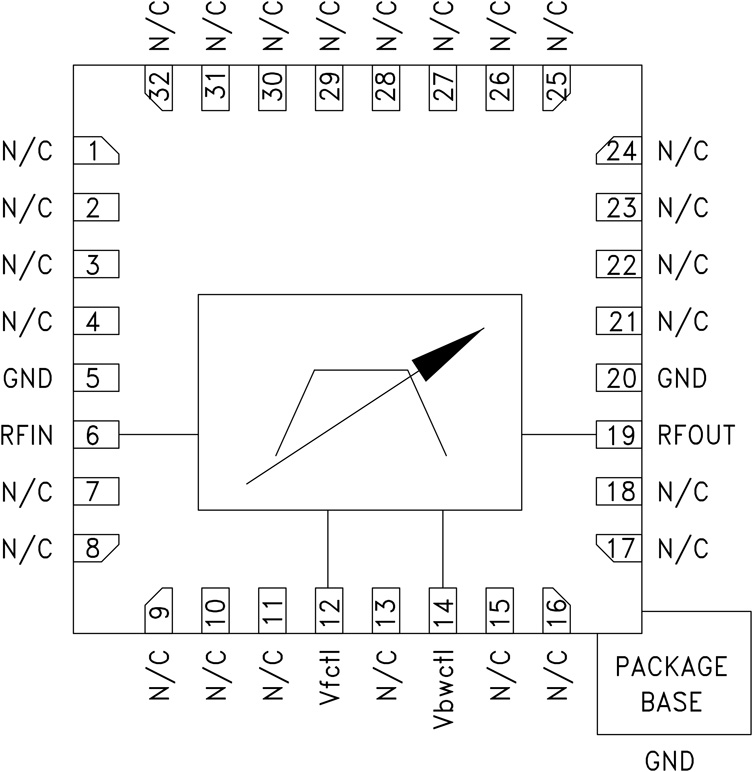

32 Lead 5x5mm SMT Package

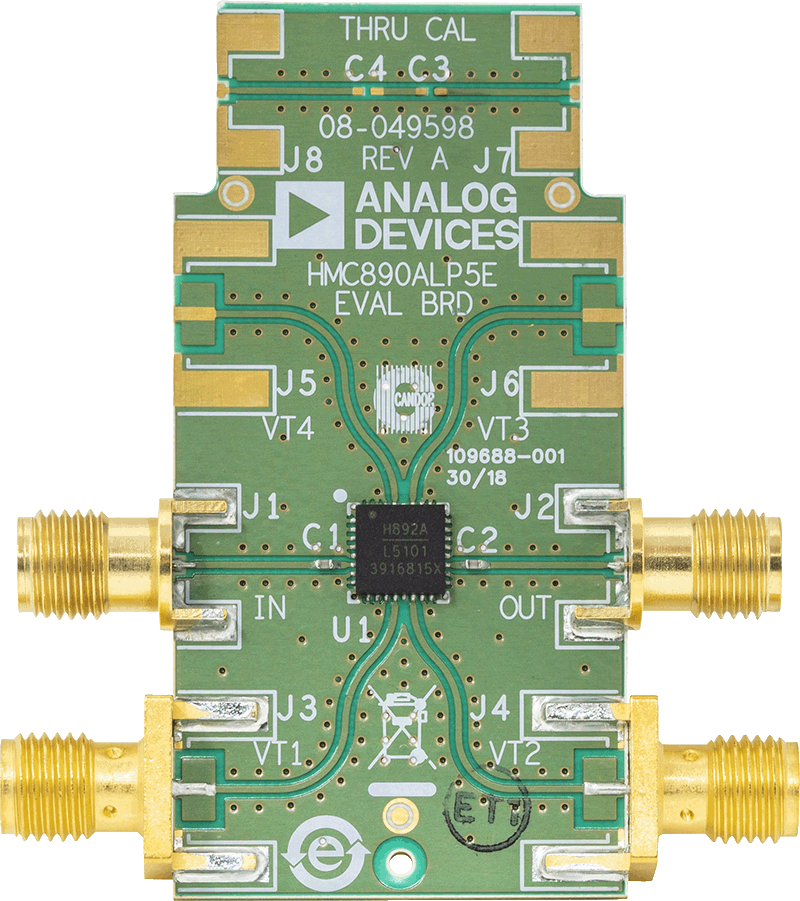

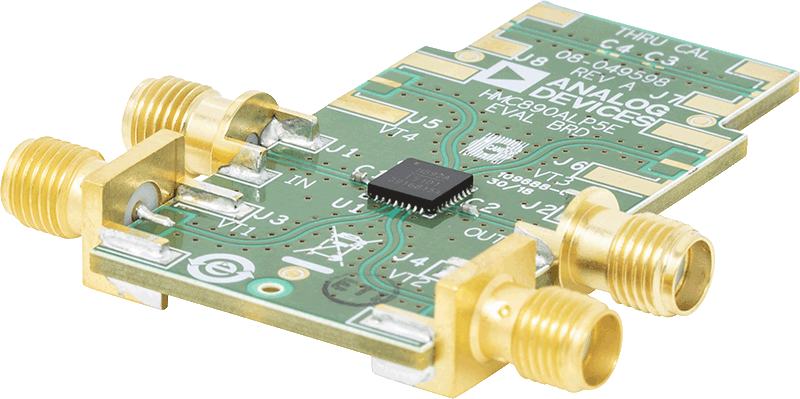

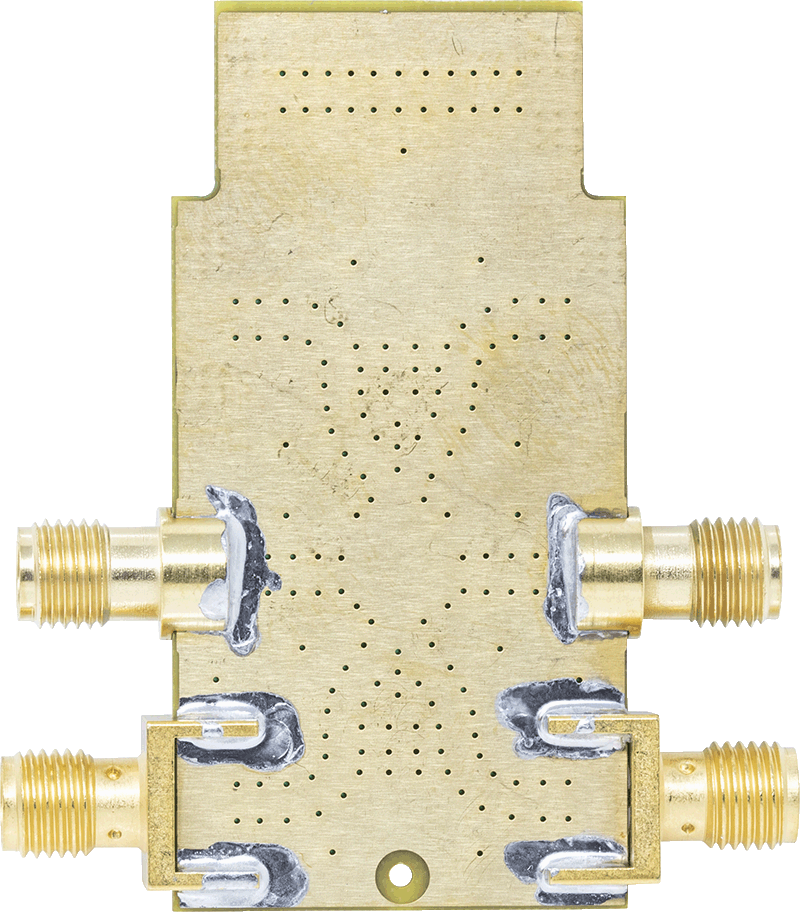

The HMC892LP5E is a MMIC band pass filter which features a user selectable passband frequency. The 3 dB filter bandwidth is approximately 9%. The 20 dB filter bandwidth is approximately 23%. The center frequency can be varied between 4 and 7.7 GHz by applying an analog tune voltage between 0 and 14V. This tunable filter can be used as a much smaller alternative to physically large switched filter banks and cavity tuned filters. The HMC892LP5E has excellent microphonics due to the monolithic design, and provides a dynamically adjustable solution in advanced communications applications.

Applications

Test & Measurement Equipment
Military RADAR & EW/ECM
SATCOM & Space
Industrial & Medical Equipment

Part Models: 2
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC892 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC892LP5E	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC892LP5ETR	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC892LP5E	Obsolete
HMC892LP5ETR	Obsolete
