HMC890A

RECOMMENDED FOR NEW DESIGNS

HMC890A

1.0 GHz to 1.9 GHz Tunable Band-Pass Filter

RECOMMENDED FOR NEW DESIGNS

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Features

Amplitude settling time: 200 ns

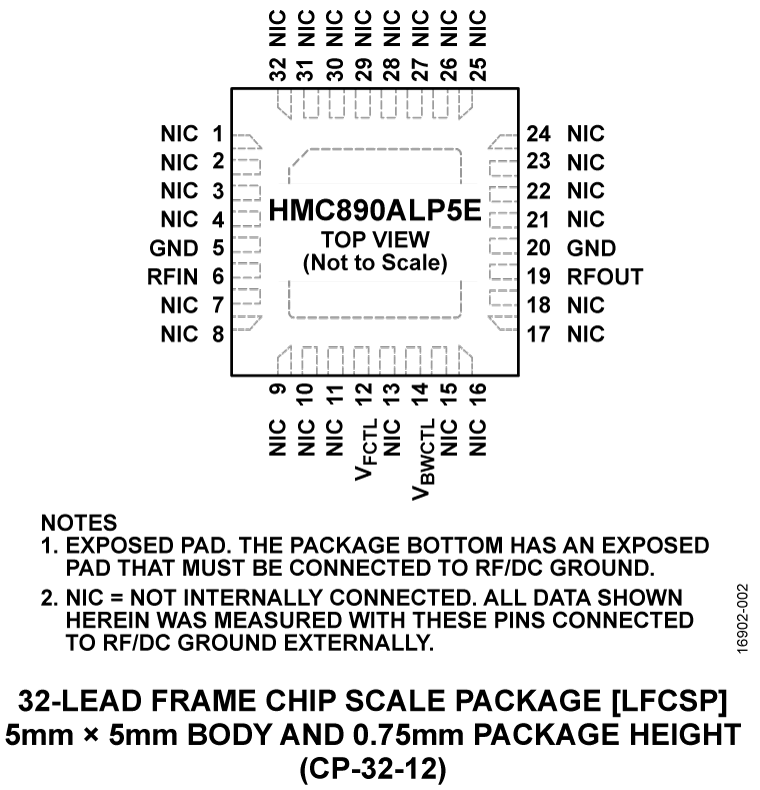

32-lead 5 mm × 5 mm RoHS compliant LFCSP package

Single chip replacement for mechanically tuned designs
Excellent wideband rejection: ≥30 dB

Additional Details

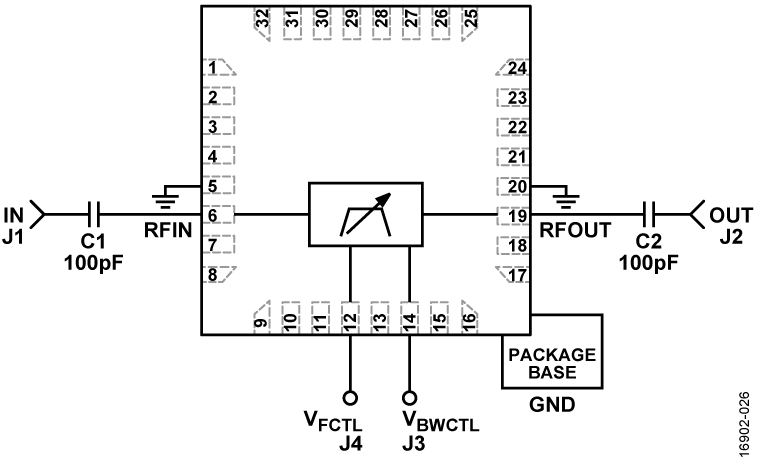

The HMC890ALP5E is a monolithic microwave integrated circuit (MMIC), band-pass filter that features a user selectable pass-band frequency. The 3 dB filter bandwidth is approximately 10%. The ≥20 dB filter bandwidth is approximately 30%. The center frequency can vary between 1.0 GHz and 1.9 GHz by applying an analog tuning voltage between 0 V and 14 V. This tunable filter can be used as a much smaller alternative to physically large switched filter banks and cavity tuned filters.

The HMC890ALP5E has excellent microphonics due to the monolithic design, and provides a dynamically adjustable solution in advanced communications applications.

APPLICATIONS

Test and measurement equipment
Military radar and electronic warfare/electronic countermeasures
Satellite communications and space
Industrial and medical equipment

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Technical Documents 1

HMC890ALP5E: 1.0 GHz to 1.9 GHz Tunable Band-Pass Filter Data Sheet (Rev.0) 09/17/2018

Reference Materials 1

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC890ALP5E	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC890ALP5ETR	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

HMC890ALP5E
Pin/Package Drawing
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC890ALP5ETR
Pin/Package Drawing
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

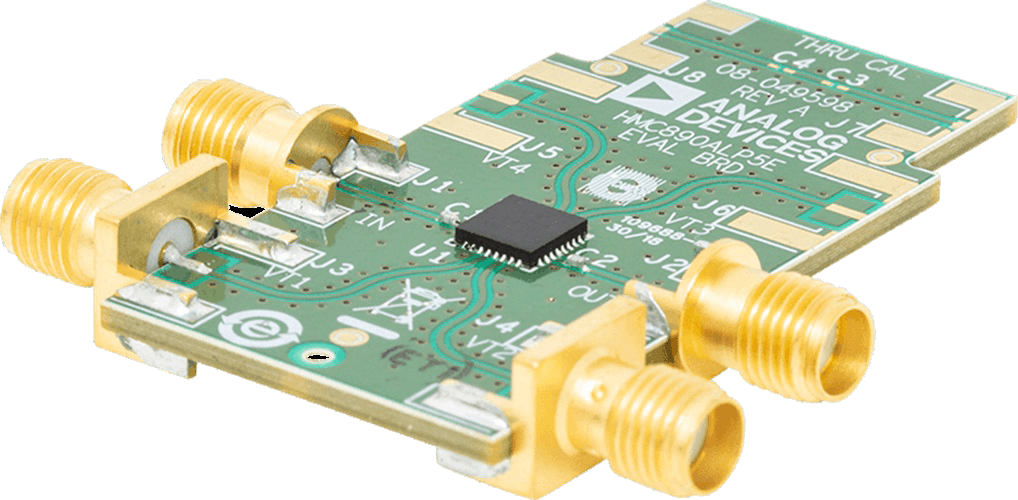

EVAL-HMC890A

HMC890A Evaluation Board

HMC890A Evaluation Board

Download

EVAL-HMC890A

HMC890A Evaluation Board

Buy Now View Details

Product Detail

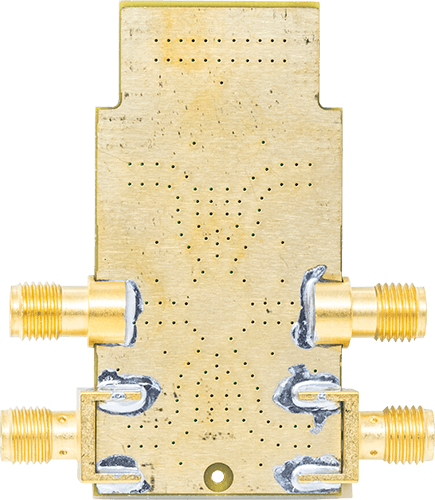

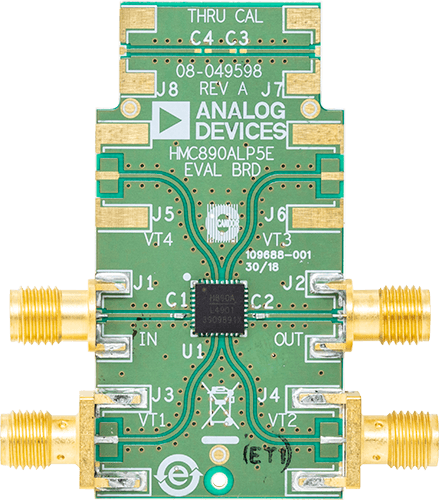

All RF traces are routed on Layer 1 (primary side), and all other remaining layers are ground planes that provide a solid ground for RF transmission lines. The top dielectric material is Rogers 4350, offering low loss performance. The prepreg material in the middle sticks core layers together, which includes an Isola 370HR layer with copper traces above and below. Both the prepreg material and the Isola 370HR core layer are used to achieve required board finish thickness.

The circuit board used in the application uses radio frequency (RF) circuit design techniques. Signal lines must have 50 Ω impedance while the package ground leads and exposed paddle must be connected directly to the ground plane. Use a sufficient number of via holes to connect the top and bottom ground planes. The EV1HMC890ALP5 evaluation board is available from Analog Devices, Inc. upon request.
