HMC890

Obsolete

Filter - Tunable, Band Pass SMT, 1 - 2 GHz

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

Fast Tuning Response; 200 ns
Excellent Wideband Rejection; 30 dB
Single Chip Replacement for Mechanically Tuned Designs

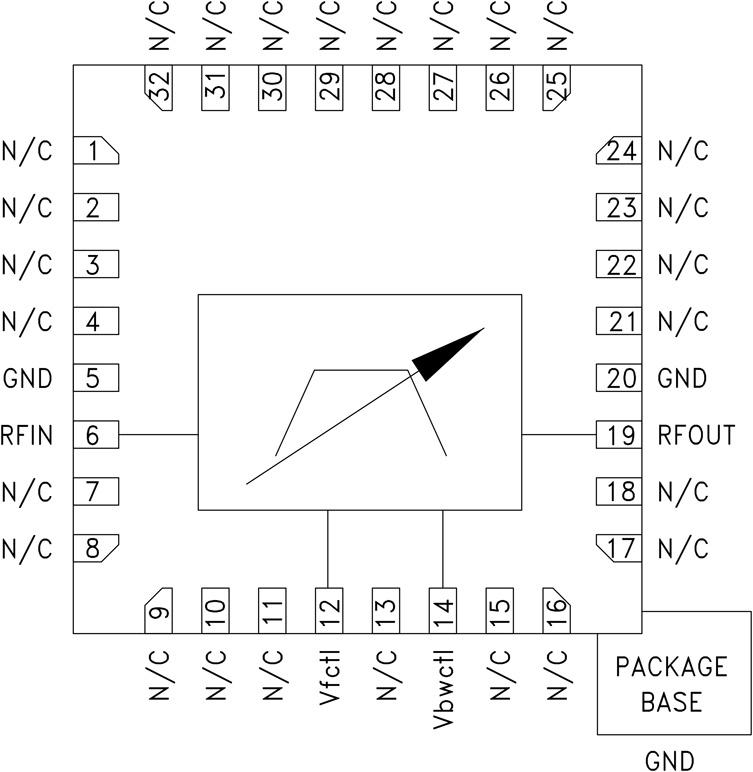

32 Lead 5x5mm SMT Package: 25mm²

Part Models: 2
1ku List Price: price unavailable

Documentation

Technical Articles 1

Ultra Compact Tunable MMIC Filters for RF & Microwave Systems 04/22/2015

Obsolete Data Sheet 1

HMC890 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC890LP5E	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC890LP5ETR	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC890LP5E	Obsolete
HMC890LP5ETR	Obsolete
