Overview

Features and Benefits

  • High Logging Range: 55 dB
  • Frequency Flatness: ±1.5 dB
  • Saturated Output Power: -7 dBm
  • Fast Rise/Fall Times: 4/10 ns
  • Single Positive Supply: +3.3V
  • ESD Sensitivity (HBM): Class 1A
  • -55 to +85 °C Operating Temperature

Product Details

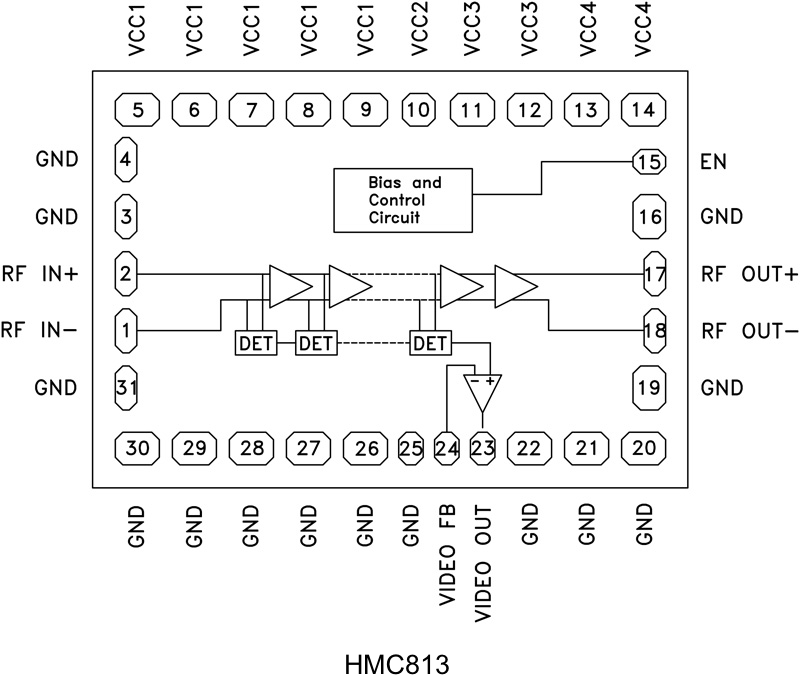

The HMC813 is a Successive Detection Log Video Amplifier (SDLVA) with a limited RF output which operates from 1 to 26 GHz. The HMC813 provides a logging range of 55 dB. This device offers typical fast rise/fall times of 4/10 ns. The HMC813 log video output slope is typically 14.5 mV/dB. Maximum recovery times are less than 20 ns. Ideal for high speed channelized receiver applications, the HMC813 operates from a single +3.3 V supply, and consumes only 150 mA. All data shown herein is measured with the chip in a 50 Ohm environment and contacted with RF probes.

APPLICATIONS

  • EW, ELINT & IFM Receivers
  • DF Radar Systems
  • ECM Systems
  • Broadband Test & Measurement
  • Power Measurement & Control Circuits
  • Military & Space Applications

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
