HMC8114

5.8 GHz to 18 GHz, 90 W Power Amplifier

Show More showmore-icon

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 1
1ku List Price
price unavailable
Features
  • 5.8 GHz to 18 GHz frequency range
  • 68 dB typical small signal gain
  • 49.3 dBm typical saturated RF output power (PSAT)
  • 61 dB gain control range with 1 dB LSB
  • −20°C to +64°C operating baseplate temperature (TBP)
  • Status and control interface 5 V TTL compatible
  • 8-bit SPI attenuator control
  • Overtemperature and RF OUT overvoltage standing wave ratio protection
  • Alarm status communicated via control connector
  • Conductively cooled through baseplate
  • Active RF circuitry hermetically sealed
  • Control printed wiring assemblies conformal coated for environmental protection
  • Meets Grade A, high impact shock per MIL-S-901D
  • Meets MIL-STD-167-1A vibration
Additional Details
show more Icon

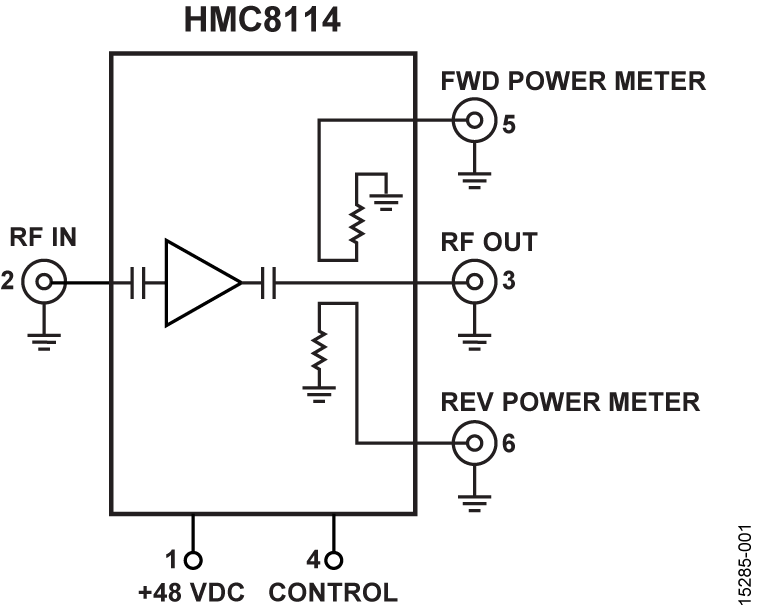

The HMC8114 is a 90 W, gallium nitride (GaN), monolithic microwave integrated circuit (MMIC) power amplifier (PA) module that operates between 5.8 GHz and 18 GHz, provided in an environmentally sealed chassis.

The amplifier typically provides 68 dB of small signal gain and 49.3 dBm of saturated radio frequency (RF) output power. The amplifier draws 1 kW of power from a 48 V dc supply. The RF inputs and outputs are dc blocked and matched to 50 Ω for ease of use.

APPLICATIONS

  • Test and measurement equipment
  • Electronic warfare (EW)
  • Commercial and military radars
    • Show More Arrow image
    file View Data Sheet (Rev.0)
    Documentation View All Documentation
    Part Models 1
    1ku List Price
    price unavailable
    modal bookmark icon

    {{modalTitle}}

    modal close icon

    {{modalDescription}}

    {{dropdownTitle}}

    input down arrow
    • {{defaultSelectedText}}
      • {{#each projectNames}}
    • {{name}}
      • {{/each}} {{#if newProjectText}}
    • plus icon {{newProjectText}}
      • {{/if}}
    {{#if toggleButtonDescription}}
    {{toggleButtonDescription}}
    {{/if}} {{#if newProjectTitle}}

    {{newProjectTitle}}

    {{projectNameErrorText}}

    {{/if}}

    HMC8114

    Documentation

    1
    overlayclose

    Filters

    1 Applied

    mobileoverlaydownarrow
    • All
      TickIcon
    • Data Sheet
    • All
      TickIcon
    • English
    resetfilter

    Reset Filters

    Data Sheet

    1

    PDF Vector

    PDF

    UPDATED 08/23/2021
    English

    HMC8114: 5.8 GHz to 18 GHz, 90 W Power Amplifier Data Sheet (Rev.0)

    Open PDF File

    redirect
    230.17 K
    download

    Download PDF

    There are no results matching this criteria. Try resetting your filters or searching for a different term

    close icon

    Documentation

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

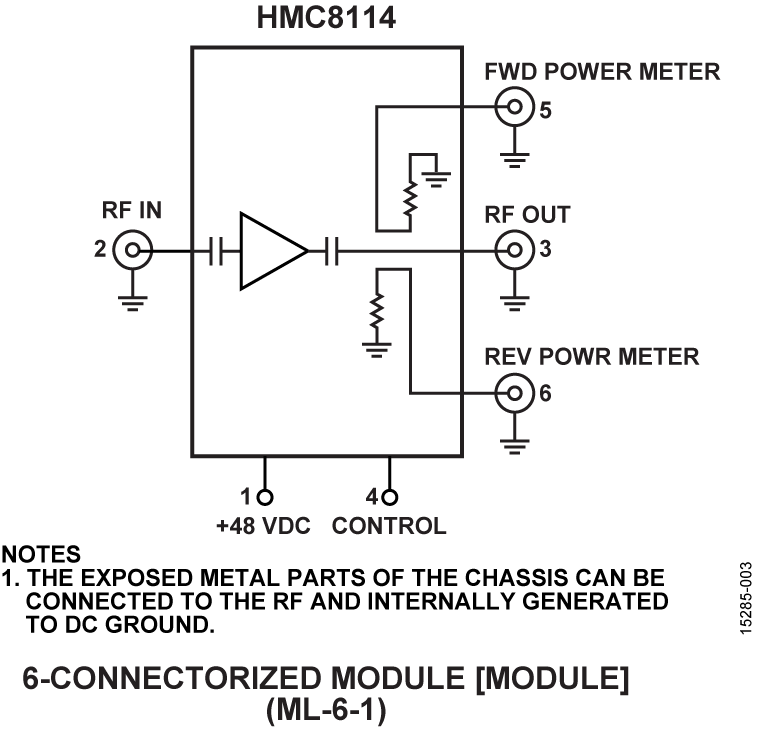

    HMC8114 MODULE CONNECTORIZED
