Overview

Features and Benefits

  • 2 GHz to 6 GHz frequency range
  • 85 dB typical small signal gain
  • 57 dBm typical saturated output power
  • 61 dB gain control range with 1 dB LSB
  • Standard 5U 19-inch rack chassis (per EIA-310D)
  • 10°C to 50°C operating temperature
  • Status and control interface 5 V TTL compatible
  • 8-bit SPI attenuator control
  • User replaceable air filter on front panel
  • Overtemperature and overvoltage standing wave ratio protection
  • Alarm status communicated via front panel LED and control connector
  • Air cooled by front to rear airflow (2 rear mounted fans)
  • Active RF hermetically sealed circuitry
  • Control printed wiring assemblies conformal coated for environmental protection
  • Meets Grade A, high impact shock per MIL-S-901D
  • Meets MIL-STD-167-1A vibration

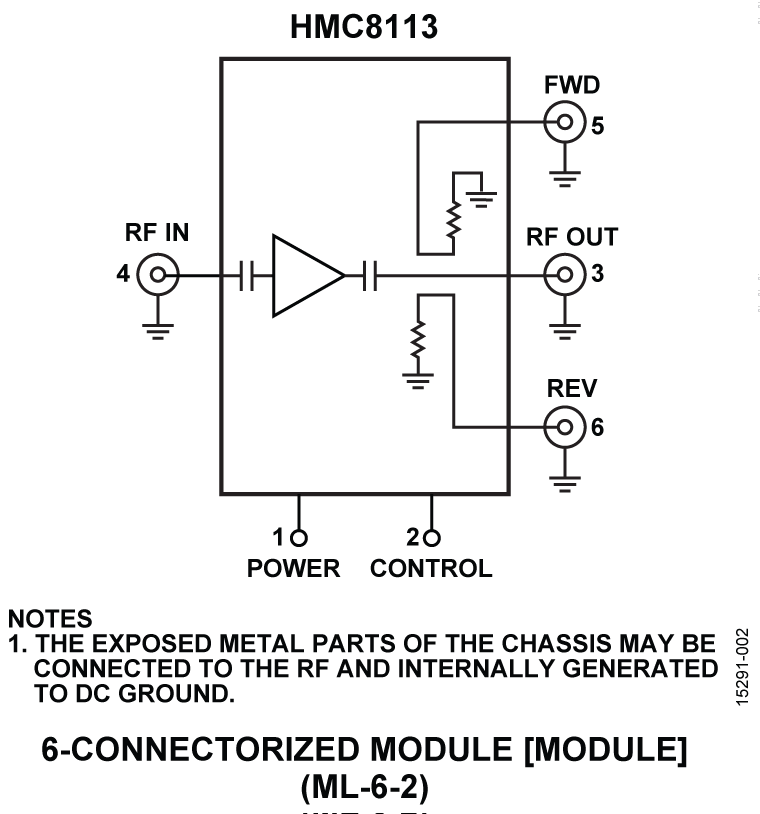

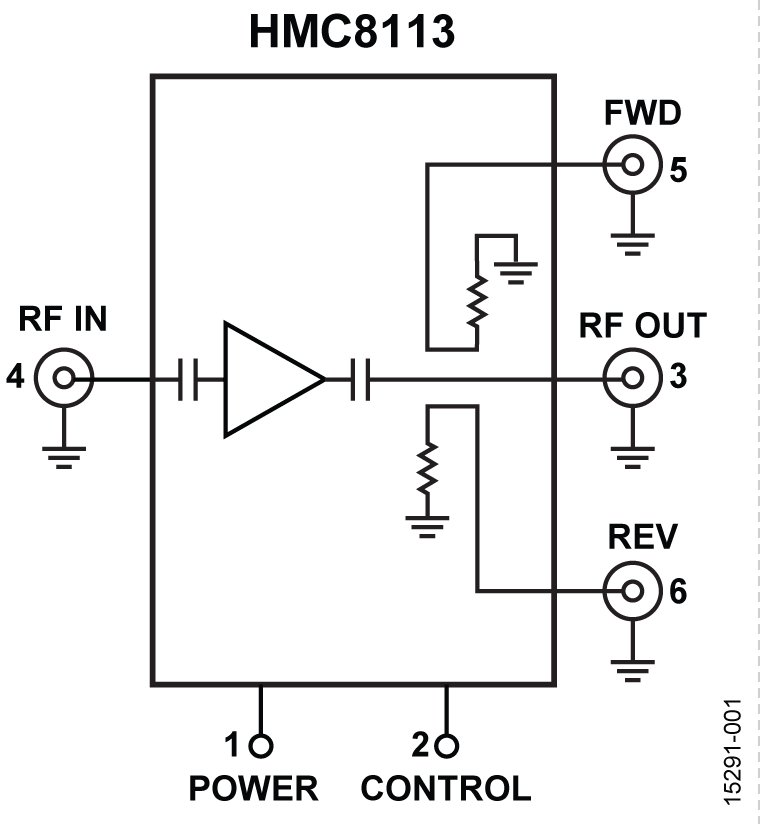

Product Details

The HMC8113 is a 500 W, gallium nitride (GaN), monolithic microwave integrated circuit (MMIC), power amplifier (PA) module that operates between 2 GHz and 6 GHz, provided in an EIA-310D standard 5U 19-inch rack mount chassis. The amplifier typically provides 85 dB of small signal gain and 57 dBm of saturated radio frequency (RF) output power. The amplifier draws 3390 W of power from a 220 VAC supply. The RF inputs and outputs are dc blocked and matched to 50 Ω for ease of use.

APPLICATIONS

  • Test and measurement equipment
  • Electronic warfare (EW)
  • Commercial and military radars
  • Product Lifecycle icon-recommended Recommended for New Designs

    This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
