Part Details
Features
  • ±0.3 dB Typical Step Error
  • Low Insertion Loss: 2 dB
  • High IP3: +55 dBm
  • Single Control Line
  • TTL/CMOS Compatible Control
  • Single +5V Supply
  • 16 Lead 3x3mm SMT Package: 9mm²

Additional Details
show more Icon

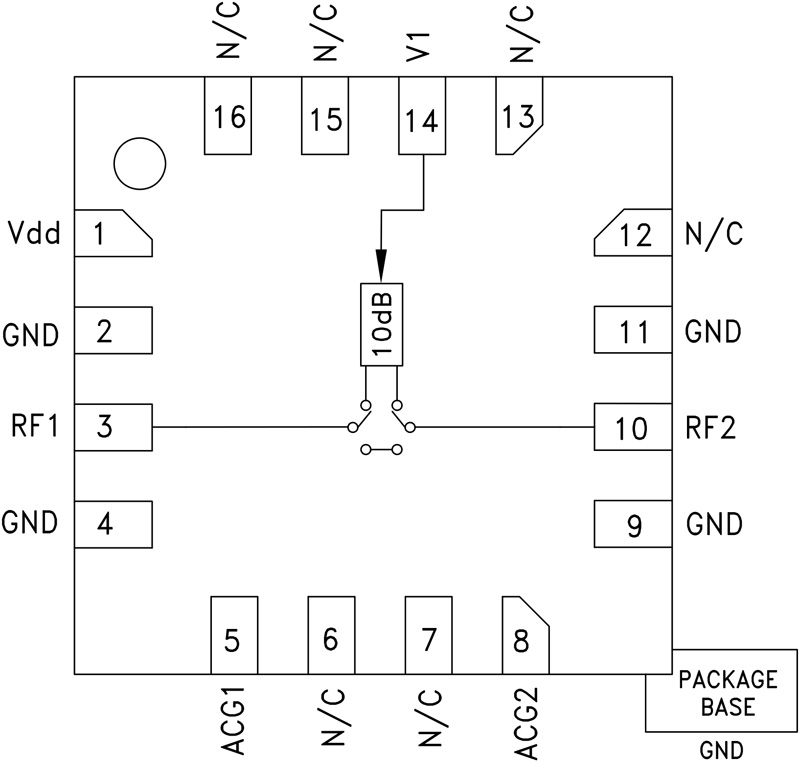

The HMC800LP3E is a broadband bidirectional 1-bit GaAs IC digital attenuator in a low cost leadless surface mount package. This single positive control line digital attenuator utilizes off chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering DC to 10 GHz, the insertion loss is 2 dB typical and attenuation accuracy is excellent at ±0.3 dB typical step error. The attenuator also features a high Input IP3 of +55 dBm. One TTL/CMOS control input is used to select the attenuation state and a single Vdd bias of +5V is required.

Applications

  • Test Equipment and Sensors
  • ISM, MMDS, WLAN, WiMAX, WiBro
  • Microwave Radio & VSAT
  • Cellular Infrastructure
