  5. HMC7748


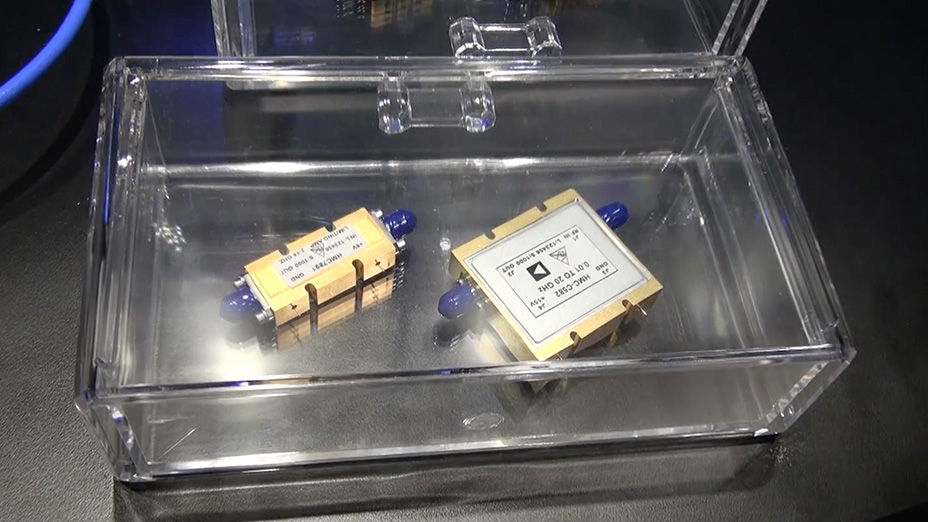

Overview

Features and Benefits

  • 58 dB typical small signal gain
  • 43 dBm typical saturated output power
  • 48 dBm typical output IP3
  • 6 dB maximum noise figure
  • Operates from 12 V and 28 V supplies
  • Built-in bias sequencing
  • Enable pin to provide shutdown capability

Product Details

The HMC7748 is a multistage power amplifier (PA) that provides 25 W of saturated output power across the band of 2 GHz to 6 GHz. It draws 0.7 A from a 12 V supply and up to 4 A from a 28 V supply. Input signals of as much as −8 dBm are acceptable, and the module has small signal gain of 60 dB.

The 12 V supply is regulated internally and generates the negative voltage required for the gate bias. Built-in bias sequencing prevents the drain voltages for the amplifier stages from being applied without the negative voltage present, which protects the amplifiers if 28 V is applied without 12 V supply applied.

An external enable pin causes the module to remain in shutdown mode unless the pin is pulled to ground. This pin provides a means of turning the amplifiers off and on without cycling the power supplies.

Applications

  • Telecom infrastructure
  • Test instrumentation
  • Military

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
