HMC719

Obsolete

Low Noise Amplifier SMT, 1.3 - 2.9 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Noise Figure: 1 dB
Gain: 34 dB
Output IP3: +39 dBm

Single Supply: +3V to +5V
50 Ω Matched Input/Output
24 Lead 4x4mm QFN Package: 9 mm²

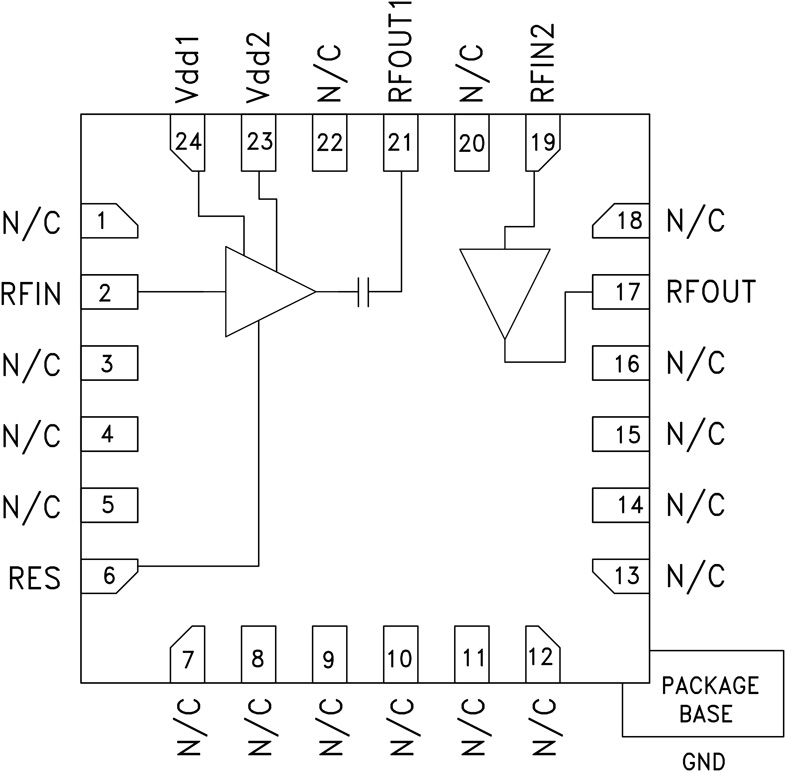

The HMC719 is a GaAs PHEMT MMIC Low Noise Amplifier that is ideal for Cellular/3G and LTE/WiMAX/4G basestation front-end receivers operating between 1.3 and 2.9 GHz. The amplifier has been optimized to provide 1 dB noise figure, 34 dB gain and +39 dBm output IP3 from a single supply of +5V.

Input and output return losses are excellent and the LNA requires minimal external matching and bias decoupling components. The HMC719 shares the same package and pinout with the HMC718 600 - 1400 MHz LNA. The HMC719 can be biased with +3V to +5V and features an externally adjustable supply current which allows the designer to tailor the linearity performance of the LNA for each application.

APPLICATIONS

Cellular/3G & LTE/WiMAX/4G
BTS & Infrastructure
Repeaters & Femtocells
Access Points
Test Equipment & Military

Suggested Replacement Parts

High IP3, Low Noise Amplifier, 0.2 - 4.0 GHz

Part Models: 2
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC719 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC719LP4E	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC719LP4ETR	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
