HMC712

HMC712 / HMC712LP3CE

Voltage Variable Attenuator Chip or SMT, 5 GHz to 26.5 GHz or 30 GHz

Part Models: 3
1ku List Price: price unavailable

Viewing:

Overview

Wide bandwidth: 5 GHz to 26.5 GHz or 30 GHz
Excellent linearity: +28 dBm input P1dB
Wide attenuation range: 28 dB, 30 dB
Absorptive topology

Single or dual control operation
Compact die size: 1.4 × 1.2 × 0.1 mm

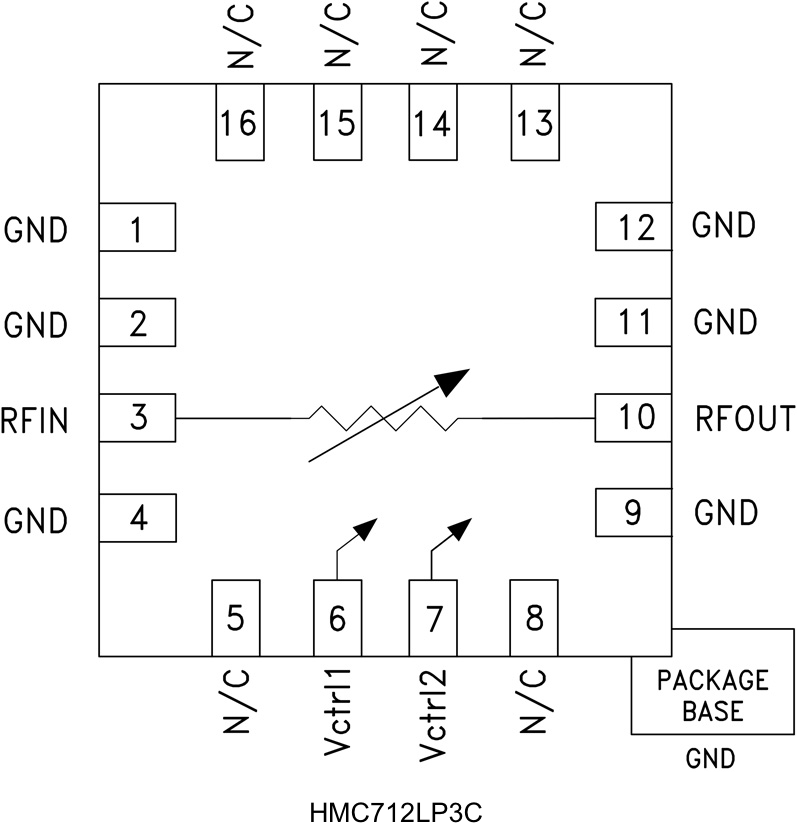

16-lead, 3 × 3 mm, surface-mount technology (SMT) package

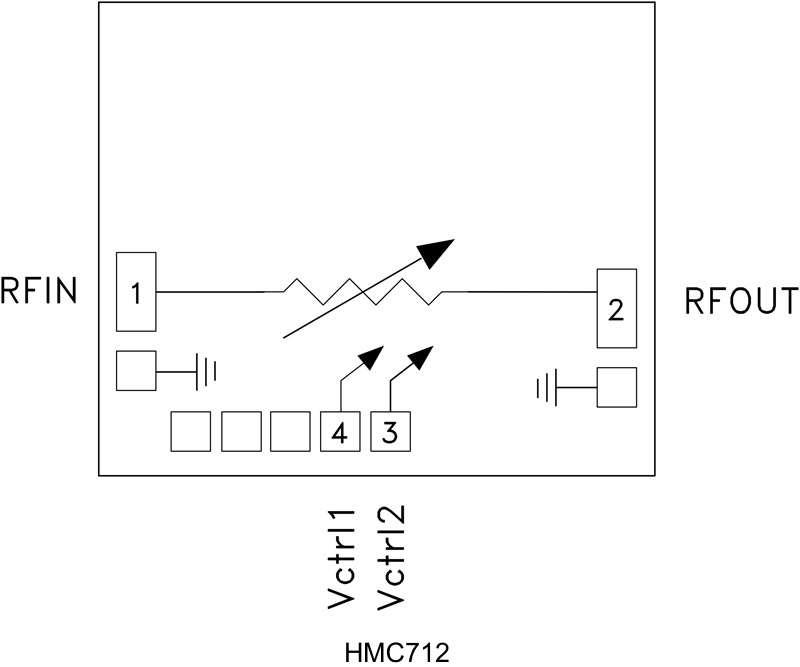

The HMC712 devices are absorptive, voltage variable attenuators (VVAs) which operate from 5 GHz to 26.5 GHz or 30 GHz and are ideal in designs when an analog dc control signal must be used to control RF signal levels over a 28 dB or 30 dB amplitude rate. They feature shunt-type attenuators which are controlled by two analog voltages, VCTRL1 and VCTRL2. Optimum linearity performance of the attenuator is achieved by first varying VCTRL of the first attenuation stage from −3 V to 0 V with VCTRL2 fixed at −3 V. The control voltage of the second attenuation stage, VCTRL2, should then be varied from −3 V to 0 V, with VCTRL1 fixed at 0 V. However, if the VCTRL1 and VCTRL2 pins are connected together, it is possible to achieve the full analog attenuation range with only a small degradation in input IP3 performance. Applications include AGC circuits and temperature compensation of multiple gain stages in microwave, point-to-point, and VSAT radios. The voltage variable attenuator is housed in an RoHS compliant, 3 × 3 mm, QFN, leadless package.

Applications

Point-to-point radios
VSAT radio
Test instrumentation
Microwave sensors
Military, ECM, and radar

Part Models: 3
1ku List Price: price unavailable

Documentation

Data Sheet 2

HMC712LP3CE Data Sheet 04/15/2015

HMC712 Die Data Sheet 04/14/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC712	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC712LP3CE	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC712LP3CETR	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC712		PDN15_0026_Form Material_Report
Jan 11, 2017 - 16_0010 Discontinuance of Select RF and Microwave Products
		PDN16_0010_Form Material_Report
HMC712LP3CE	Obsolete
HMC712LP3CETR	Obsolete

This is the most up-to-date revision of the Data Sheet.
