Features and Benefits

  • Equivalent input bandwidth: 9.3 GHz typical
  • Propagation delay: 85 ps typical
  • Overdrive and slew rate dispersion: 10 ps typical
  • Input signal minimum pulse width: 60 ps typical
  • Resistor programmable hysteresis
  • Differential latch control
  • Power dissipation: 140 mW typical
  • 16-terminal, 3 mm × 3 mm, ceramic leadless chip carrier (LCC)

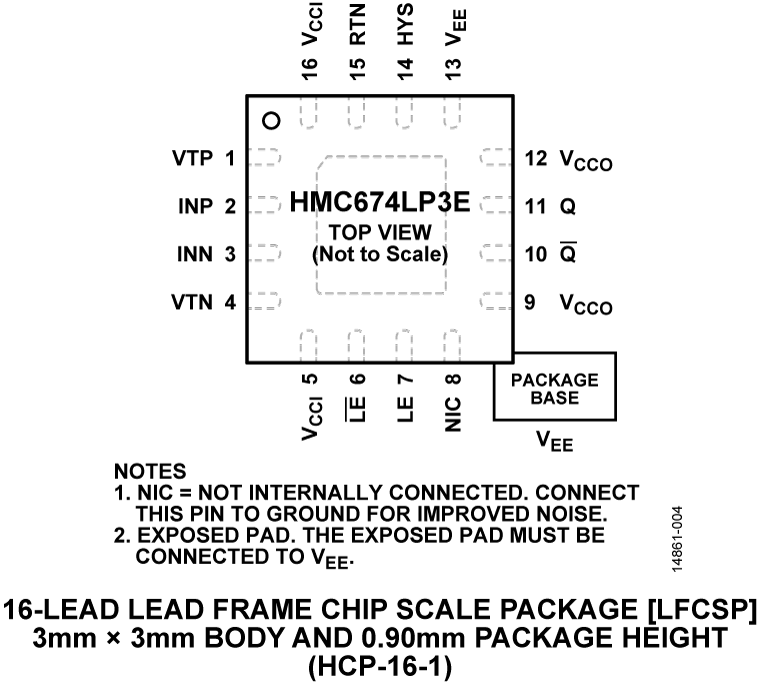

  • 16-lead lead frame chip scale package (LFCSP)

Product Details

The HMC674LP3E are silicon germanium (SiGe), monolithic, ultrafast comparators that feature reduced swing positive emitter-coupled logic (RSPECL) output drivers and latch inputs. These comparators support 10 Gbps operation and provide 85 ps propagation delay and an input signal minimum pulse width of 60 ps with 0.2 ps rms of random jitter (RJ). Overdrive and slew rate dispersion is typically 10 ps, making the HMC674LP3E ideal for a wide range of applications from ATE to broadband communications. The RSPECL output stages directly drive 400 mV into a 50 Ω resistor terminated to VTT = (VCCO − 2.0 V), where VTT is the PECL termination voltage (see Figure 16). The HMC674LP3E feature a high speed latch and programmable hysteresis. These devices can operate in either latch mode or as a tracking comparator.


  • Automatic test equipment (ATE) applications
  • High speed instrumentation
  • Digital receiver systems
  • Pulse spectroscopy
  • High speed trigger circuits
  • Clock and data restoration
