HMC633-Die

PRODUCTION

GaAs PHEMT MMIC Driver Amplifier, 5 - 17 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Gain: 29 dB
P1dB: +23 dBm
Output IP3: +30 dBm
Saturated Power: +24 dBm @ 27% PAE
Supply Voltage: +5V @ 180 mA
50 Ohm Matched Input/Output
Die Size: 2.07 x 0.93 x 0.1 mm

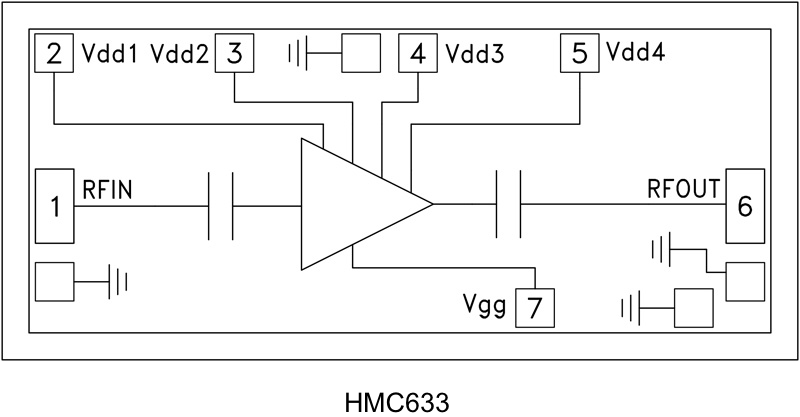

The HMC633 is a GaAs MMIC PHEMT Driver Amplifier die which operates between 5 and 17 GHz. The amplifier provides up to 31 dB of gain, +30 dBm Output IP3, and +23 dBm of output power at 1 dB gain compression, while requiring 180 mA from a +5V supply. The HMC633 is an ideal driver amplifier for microwave radio applications from 5 to 17 GHz, and may also be biased at +5V, 130 mA to provide 2 dB lower gain with improved PAE. The HMC633 amplifier I/O’s are DC blocked and internally matched to 50 Ohms facilitating easy integration into Multi-Chip-Modules (MCMs). All data is taken with die connected at input and output RF ports via one 1 mil wedge bond with minimal length of 0.31 mm (12 mils).

Applications

Point-to-Point Radios
Point-to-Multi-Point Radios & VSAT
LO Driver for Mixers
Military & Space

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC633 GaAs PHEMT MMIC DRIVER AMPLIFIER, 5 - 17 GHz Die Data Sheet 04/13/2015

Application Note 4

Thermal Management for Surface Mount Components General Application Note 11/11/2015

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC633	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC633-SX	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

S-Parameter 1

HMC633 Die S-Parameters

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

Open Tool
