Overview

Features and Benefits

  • TTL/CMOS compatible serial, parallel or latched parallel control interface
  • High Output IP3: +35 dBm
    (At all gain settings)
  • Wide Gain Control Range: 23 dB
  • Power-up State Selection
  • 24 Lead 4x4 mm SMT Package: 16 mm²
  • Excellent State & Step Accuracy (±0.05 dB)

Product Details

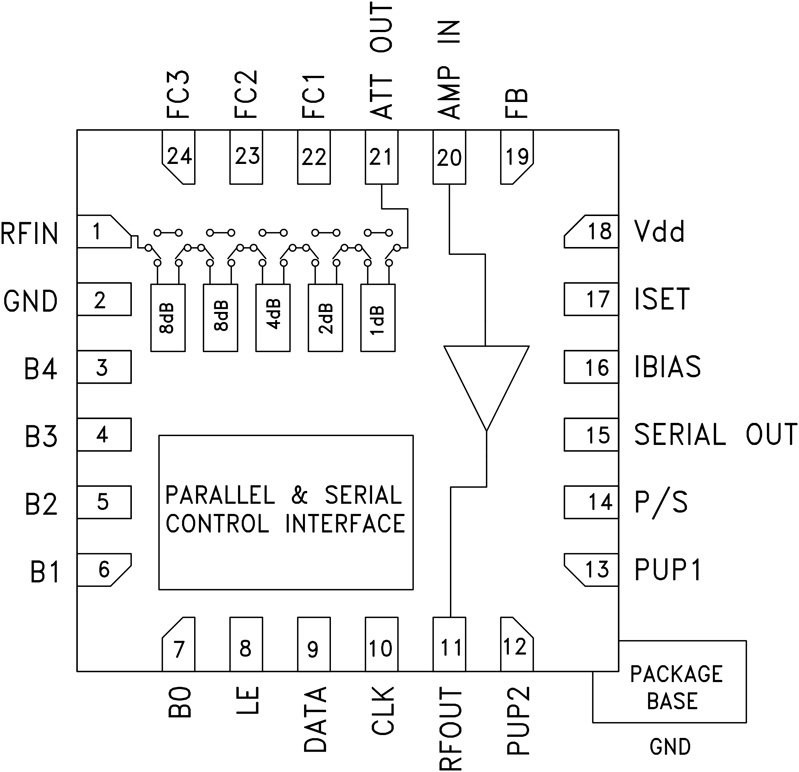

The HMC628LP4(E) is a digitally controlled variable gain amplifier which operates from 50 to 800 MHz, and can be programmed to provide anywhere from 8 dB attenuation, to 15 dB of gain, in 1 dB steps. The HMC628LP4(E) delivers noise figure of 5 dB in its maximum gain state, with output IP3 of up to +35 dBm in any state. The dual mode control interface is CMOS/ TTL compatible, and accepts either a three wire serial input or a 5 bit parallel word.

The HMC628LP4(E) also features a user selectable power up state and a serial output port for cascading other Hittite serial controlled components. The HMC628LP4(E) is housed in a RoHS compliant 4x4 mm QFN leadless package, and is available in three evaluation board configurations, depending on the application frequency.

Applications

  • Cellular / 3G Infrastructure
  • WiBro / WiMAX / 4G
  • Microwave Radio & VSAT
  • Test Equipment and Sensors
  • IF & RF Applications



Product Lifecycle icon-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
