HMC617

Obsolete

Low Noise Amplifier SMT, 0.55 - 1.2 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Noise Figure: 0.5 dB
Gain: 16 dB
Output IP3: +37 dBm
Single Supply: +3V to +5V
50 Ohm Matched Input/Output
16 Lead 3x3mm QFN Package: 9 mm²

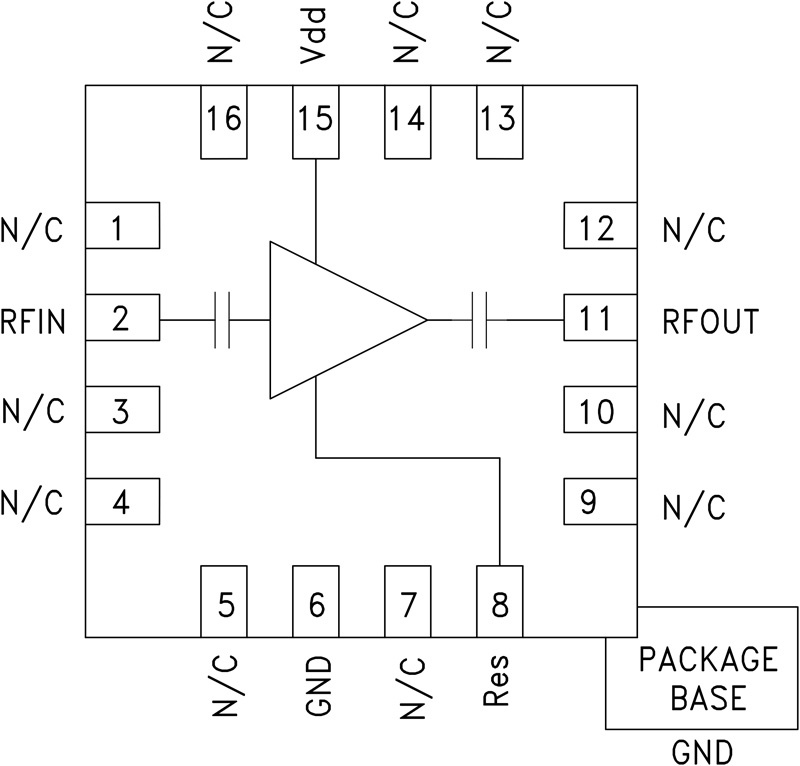

The HMC617LP3(E) is a GaAs PHEMT MMIC Low Noise Amplifier that is ideal for Cellular/3G and LTE/4G basestation front-end receivers operating between 550 and 1200 MHz. The amplifier has been optimized to provide 0.5 dB noise figure, 16 dB gain and +37 dBm output IP3 from a single supply of +5V. Input and output return losses are excellent and the LNA requires minimal external matching and bias decoupling components.

The HMC617LP3(E) shares the same package and pinout with the HMC618LP3(E) 1.7 - 2.2 GHz LNA. The HMC617LP3(E) can be biased with +3V to +5V and features an externally adjustable supply current which allows the designer to tailor the linearity performance of the LNA for each application. The HMC617LP3(E) offers improved noise figure versus the previously released HMC372LP3(E) and the HMC376LP3(E).

Applications

Cellular/3G and LTE/4G
BTS & Infrastructure
Repeaters and Femtocells
Public Safety Radio
Access Points

Part Models: 2
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC617LP3/HMC617LP3E: GaAs SMT PHEMT Low Noise Amplifier, 0.55 - 1.2 GHz Obsolete Data Sheet 02/08/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC617LP3E	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC617LP3ETR	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 3, 2016 - 16_0010 Discontinuance of Select RF and Microwave Products
		PDN16_0010_Form Material_Report
HMC617LP3E	Obsolete
HMC617LP3ETR	Obsolete
