HMC5846

GaAs pHEMT MMIC 2 Watt Power Amplifier with Power Detector, 12 - 16 GHz

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

file View Data Sheet
Documentation View All Documentation
S-Parameter HMC5846 S-Parameters Download 6.61 KB
Features
  • Saturated Output Power: 35.5 dBm @ 30% PAE
  • High Output IP3: +42.5 dBm
  • High Gain: 31 dB
  • DC Supply: +7V @ 1200 mA
  • No External Matching Required
Additional Details
show more Icon

The HMC5846LS6 is a 4 stage GaAs pHEMT MMIC 2 Watt Power Amplifier with an integrated temperature compensated power detector which operates between 12 and 16 GHz. The HMC5846LS6 provides 31 dB of gain, +35.5 dBm of saturated output power, and 30% PAE from a +7V supply. The HMC5846LS6 exhibits excellent linearity and is optimized for high capacity digital microwave radio. It is also ideal for 13.75 to 14.5 GHz Ku Band VSAT transmitters as well as SATCOM applications.

Applications

  • Point-to-Point Radios
  • Point-to-Multi-Point Radios
  • VSAT & SATCOM
  • Military & Space
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
S-Parameter HMC5846 S-Parameters Download 6.61 KB
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

HMC5846

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Obsolete Data Sheet
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Obsolete Data Sheet

1

PDF Vector

PDF

UPDATED 02/06/2015
English
HMC5846LS6: GaAs pHEMT MMIC 2 Watt Power Amplifier with Power Detector, 12 - 16 GHz Obsolete Data Sheet redirect icon

1.05 M

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Quality Documentation 2

Semiconductor Qualification Test Report: PHEMT-E (QTR: 2013-00259)
Package/Assembly Qualification Test Report: 20L 7x7mm Ceramic LCC Package (QTR: 11005P REV: 03)

Video

2

Thumbnail Image

Video

2015-06-05

01:44

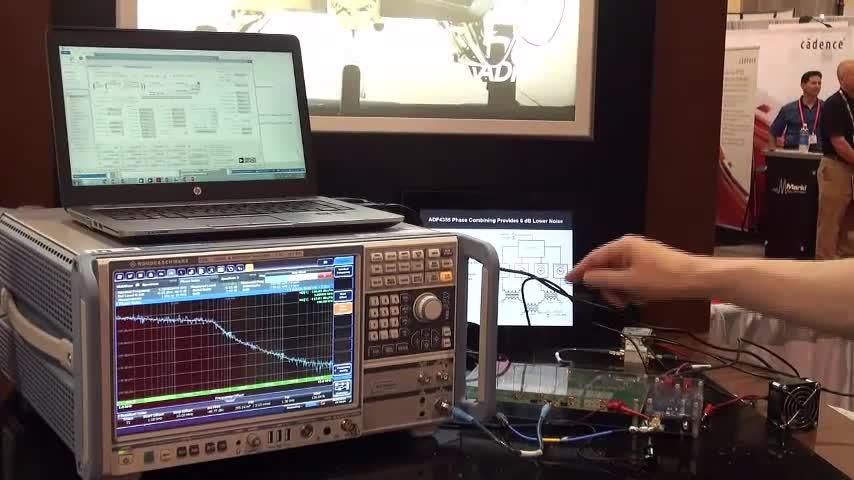

X-band RADAR Tx Solution With Reduced Phase Noise Synthesizers
