HMC575 Data Sheet4/22/2015
Overview
Features and Benefits
- High Output Power: +17 dBm
- Low Input Power Drive: -2 to +6 dBm
- 100 KHz SSB Phase Noise: -140 dBc/Hz
- Fo, 3Fo Isolation: 15 dBc
- Single Supply: +5V@ 90 mA
- RoHS Compliant 4×4 mm SMT Package
Product Details

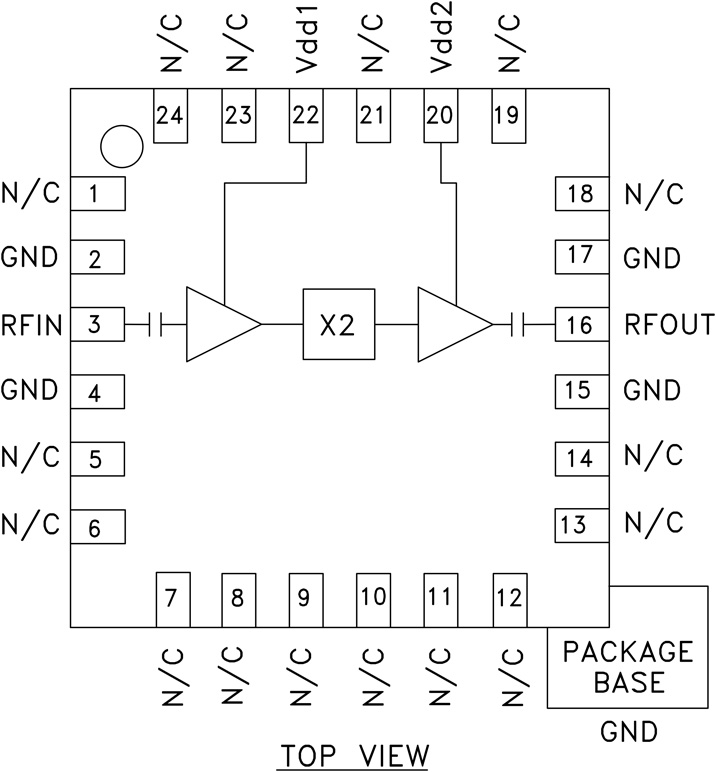

The HMC575LP4(E) is a x2 active broadband frequency multiplier utilizing GaAs PHEMT technology in a leadless RoHS compliant SMT package. When driven by a 3 dBm signal, the multiplier provides +17 dBm typical output power from 6 to 9 GHz. The Fo and 3Fo isolations are 15 dBc with respect to output signal level.
This frequency multiplier features DC blocked I/O’s, and is ideal for use in LO multiplier chains for Pt to Pt & VSAT Radios yielding reduced parts count vs. traditional approaches. The low additive SSB Phase Noise of -140 dBc/Hz at 100 kHz offset helps maintain good system noise performance. The HMC575LP4(E) is compatible with surface mount manufacturing techniques.
APPLICATIONS
- Wireless Local Loop
- Point-to-Point & VSAT Radios
- Test Instrumentation
- Military & Space
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

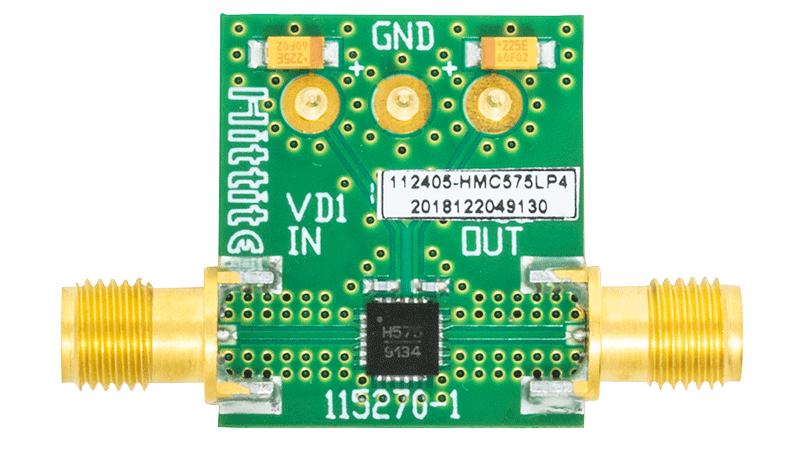

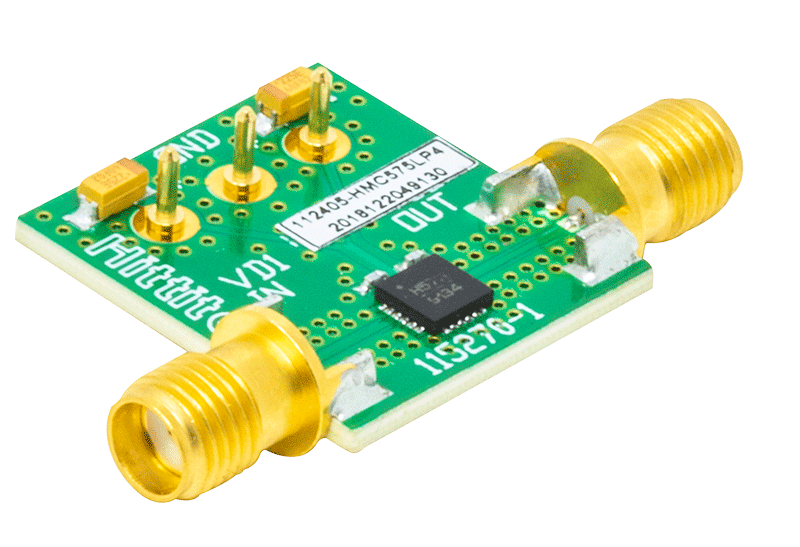

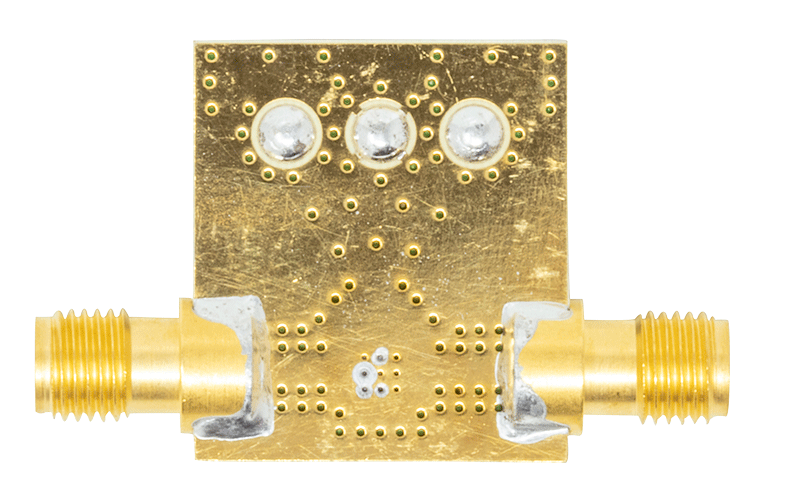

Evaluation Kits (1)
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| HMC575LP4 | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm w/ EP) | |
| HMC575LP4E | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm w/ EP) | |
| HMC575LP4ETR | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm w/ EP) | |
| HMC575LP4TR | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm w/ EP) | |
| Wafer Fabrication Data |
