HMC473

Obsolete

Voltage Variable Attenuator SMT, 0.45 - 2.2 GHz

Viewing:

Overview

RoHS Compliant Product
Single Positive Voltage Control: 0 to +3V
High Attenuation Range:
48 dB @ 0.9 GHz

High P1dB Compression Point: +15 dBm
Ultra Small Package: MSOP8
Replaces HMC173MS8

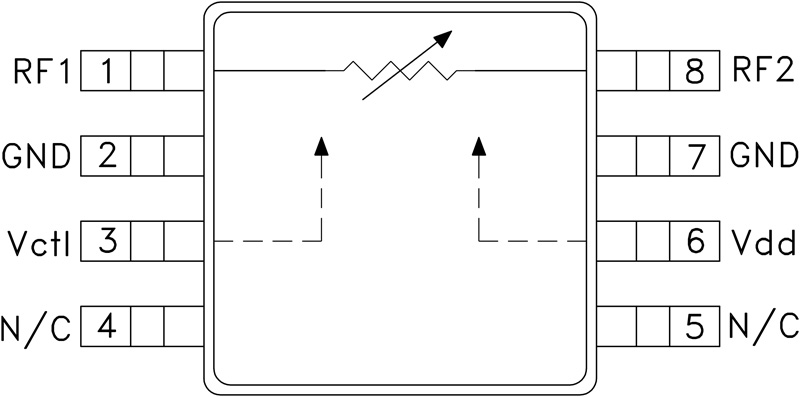

The HMC473MS8(E) is a general purpose absorptive voltage variable attenuator in an 8-lead MSOP package. The devices operate with a +3.3V supply voltage and a 0 to +3V control voltage. Unique features include a high dynamic attenuation range of up to 48 dB and excellent power handling performance through all attenuation states. The HMC473MS8(E) is ideal for operation in wireless applications from 0.45 to 1.6 GHz. Operation from 1.7 to 2.2 GHz is possible with a reduced maximum attenuation of 29 to 32 dB. Improved control voltage linearity vs. attenuation can be achieved with an external driver circuit.
