HMC420

Obsolete

Downconverter Mixer SMT, 0.7 - 1.0 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

+15 dBm Input IP3
Integrated IF & LO Amps: 0 dBm LO
Conversion Gain: 12.5 dB

Noise Figure: 13 dB
Single Positive Supply: +5V, 52 mA

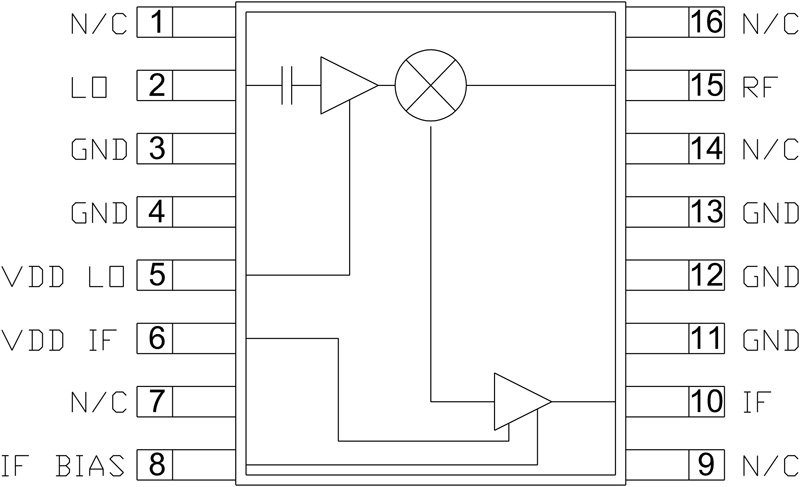

The HMC420QS16(E) is a linear down-converter receiver IC suitiable for cellular infrastructure applications from 0.7 - 1.0 GHz. An integrated mixer coupled with a high dynamic range IF amplifier achieves an input intercept point (OIP3) of +15 dBm, and an input P1dB of +1 dBm. The converter provides a gain of 12.5 dB and 13 dB typical single side band noise. The IC operates from positive +5V rails consuming 52 mA of current while requiring only 0 dBm LO drive. The design requires no external baluns, and minimal off chip components. The HMC420QS16(E) has the same package footprint as the HMC380QS16G(E) & HMC421QS16(E) 1.4 - 2.3 GHz downconverter ICs.

Applications

GSM & CDMA Infrastructure
GPRS & EDGE Infrastructure
Wireless Data/CDPD

Part Models: 2
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC420 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC420QS16E	16-Lead QSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC420QS16ETR	16-Lead QSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC420QS16E	Obsolete
HMC420QS16ETR	Obsolete
