Part Details
Part Models 2
1ku List Price
price unavailable
Features
  • Conversion Loss: 8 dB
  • LO/RF Isolation: 40 dB
  • LO/IF Isolation: 37 dB
  • Input IP3: +24 dBm
  • No External Components
  • MSOP8G SMT Package
Additional Details
show more Icon

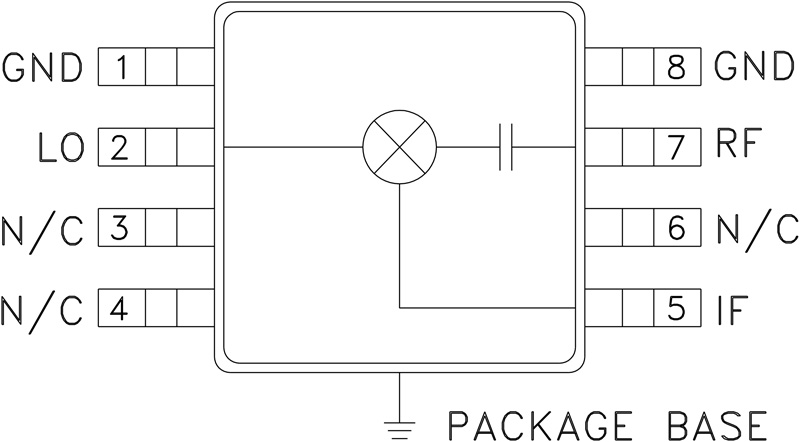

The HMC410AMS8G(E) is a passive double balanced high IP3 mixer that operates between 9 and 15 GHz. The HMC410AMS8G(E) operates with LO drive levels between +13 dBm and +19 dBm, and provide 8 dB conversion loss across the entire specified frequency band. These mixers require no external components or bias.

The HMC410AMS8G(E) is a replacement for the HMC410MS8G(E)

Applications

  • Long Haul Radio Platforms
  • Microwave Radio
  • VSAT
Part Models 2
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
HMC410AMS8GE
  • HTML
  • HTML
HMC410AMS8GETR
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 6, 2019

- 19_0063

Assembly Site Transfer of Select MSOP and SOIC_N E-pad Devices to Carsem Malaysia

Mar 3, 2016

- 16_0010

Discontinuance of Select RF and Microwave Products

HMC410AMS8GE

LAST TIME BUY

HMC410AMS8GETR

LAST TIME BUY

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 6, 2019

- 19_0063

arrow down

Assembly Site Transfer of Select MSOP and SOIC_N E-pad Devices to Carsem Malaysia

Mar 3, 2016

- 16_0010

arrow down

Discontinuance of Select RF and Microwave Products

HMC410AMS8GE

LAST TIME BUY

HMC410AMS8GETR

LAST TIME BUY
