HMC351

Obsolete

High IP3 DBL-BAL Mixer SMT, 0.7 - 1.2 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Conversion Loss: 9 dB
LO/IF Isolation: 35 dB
LO/RF Isolation: 42 dB

Input IP3: +25 dBm
Input IP2: +48 dBm

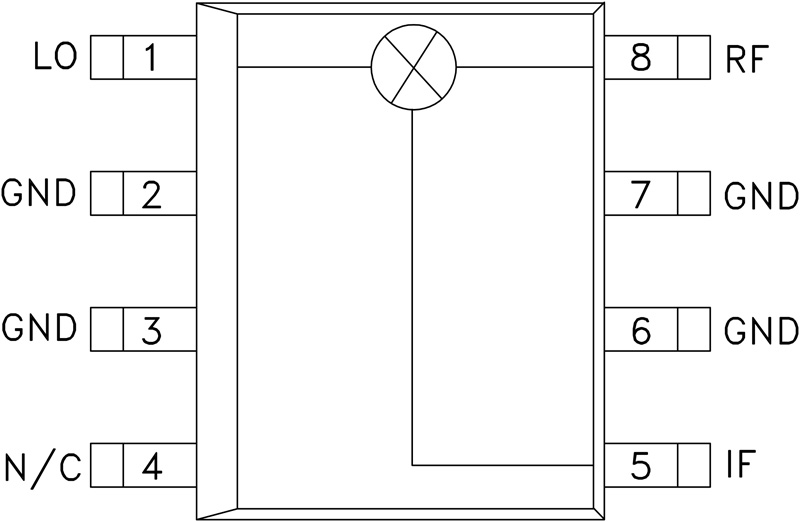

The HMC351S8(E) is a double balanced mixer in 8 lead plastic surface mount package. The passive GaAs schottky diode mixer implements planar on chip baluns and requires no external components. The mixer can be used as an upconverter, down converter, or modulator. The mixer provides 9 dB conversion loss and +25 dBm IIP3 with LO drive levels of +19 dBm. The design was optimized for low cost high volume applications where high converter linearity is required. The high LO suppression of 42 dB yields excellent carrier suppression for modulator applications.

Applications

Cellular Basestations
Cable Modems
Fixed Wireless Access Systems

Part Models: 2
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC351: High IP3 DBL-BAL Mixer SMT, 0.7 - 1.2 GHz Obsolete Data Sheet 04/24/2017
