HMC322

HMC322 / HMC322ALP4E / HMC322LP4

SP8T Nonreflective Switch Chip and SMT, DC to 10.0 GHz

Viewing:

Overview

Broadband performance: DC to 10 GHz
High isolation: >38 dB @ 4 GHz; >30 dB @ 6 GHz
Low insertion loss: 2 dB @ 4 GHz; 2.4 dB @ 6 GHz

Integrated 3:8 TTL decoder
Small size: 1.45 mm x 1.6 mm x 0.10 mm
4 mm x 4 mm SMT package

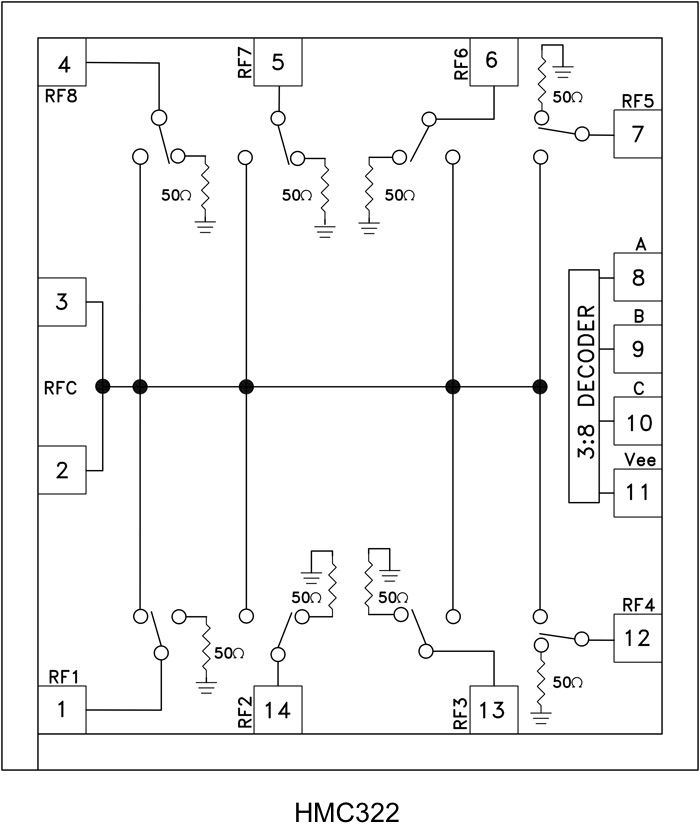

The HMC322 is a broadband nonreflective GaAs MESFET SP8T switch chip and switch in a low cost leadless surface-mount package. Covering DC to 10 GHz, this switch offers high isolation and low insertion loss and extends the frequency coverage of the SP8T switch product line. This switch also includes an on-board binary decoder circuit, which reduces the required logic control lines to three. The switch operates using a negative control voltage of 0/−5 V and requires a fixed bias of −5 V. All data are tested with the chip in a 50 Ω test fixture connected via 0.025 mm (1 mil) diameter wire bonds of 0.5 mm (20 mils) length. This switch is suitable for usage in 50 Ω or 75 Ω systems.
