HMC252

Obsolete

HMC252

SP6T Non-Reflective Switch SMT, DC - 3 GHz

Obsolete

Alternative Part

HMC252A

GaAs MMIC SP6T Non-Reflective Switch, DC - 3 GHz

HMC252A

RECOMMENDED FOR NEW DESIGNS

GaAs MMIC SP6T Non-Reflective Switch, DC - 3 GHz

Obsolete

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price

price unavailable

Features

Low Insertion Loss (2 GHz): 0.9 dB
Single Positive Supply: Vdd = +5V

Integrated 3:6 TTL Decoder
24 Lead QSOP Package

Additional Details

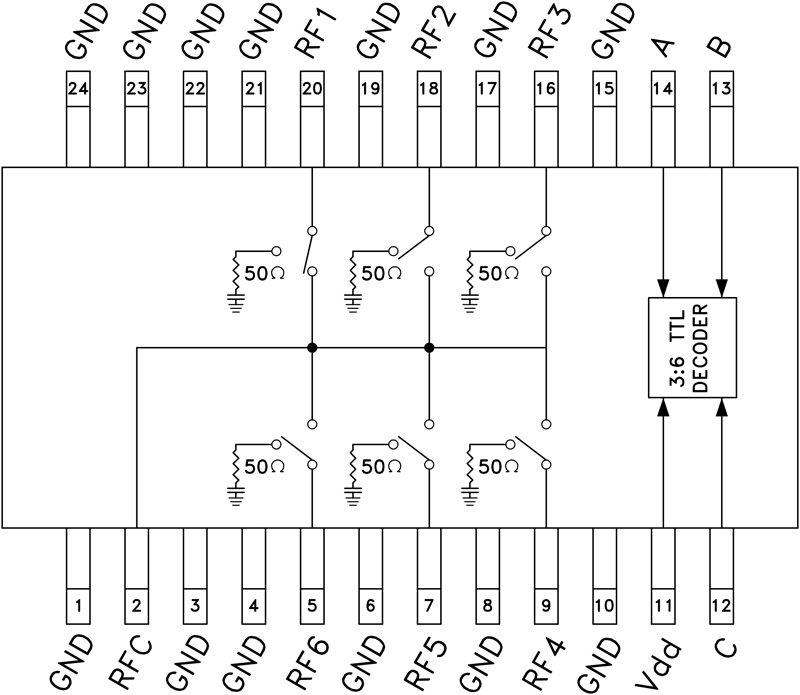

The HMC252QS24(E) is a low-cost non-reflective SP6T switch in 24-lead QSOP package featuring wideband operation from DC to 3 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:6 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC252QS24(E) SP6T replaces multiple configurations of SP4T and SPDT MMIC switches and logic drivers.
