HMC240A

Obsolete

SPDT Reflective Switch Chip, DC - 4 GHz

Viewing:

Overview

Broadband Performance: DC - 4 GHz
Low Insertion Loss: 0.5 dB @ 2 GHz

High IIP3: +48 dBm
Small Size: 0.66 x 0.60 x 0.18 mm

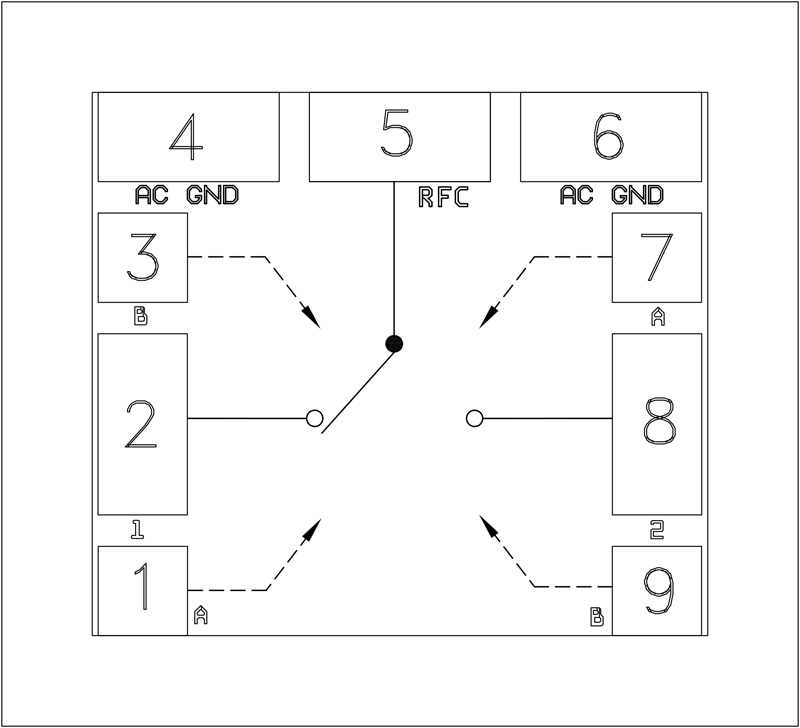

The HMC240A is a low cost GaAs MESFET SPDT switch chip. Covering DC to 4 GHz, this switch offers high isolation and low insertion loss. RF1 and RF2 are reflective shorts when “off”. The switch can operate using either two negative control logic inputs of -5/0V or two positive control voltage logic inputs of 0/+5V. All data is tested with the chip in a 50 Ohm test fixture connected via 0.025 mm (1 mil) diameter wire bonds of 0.31 mm (12 mils) length.
