HMC1096

RECOMMENDED FOR NEW DESIGNS

HMC1096

GaAs pHEMT MMIC x2 Active Frequency Multiplier, 3.8-5.6 GHz Output

RECOMMENDED FOR NEW DESIGNS

RECOMMENDED FOR NEW DESIGNS

HMC1096 Functional Block Diagram slide

HMC1096 Functional Block Diagram

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Features

High Output Power: 12 dBm
Low Input Power Drive: -2 to +5 dBm
Fo, 3 Fo Isolation: +22 dBc
Single Supply: +5V @100 mA
16 Lead 3 x 3 mm SMT Package

Additional Details

The HMC1096LP3E is a x2 active broadband frequency multiplier utilizing GaAs pHEMT technology in a leadless RoHS compliant Low Stress Injection Molded Plastic SMT package. When driven by a 0 dBm signal, the multiplier provides +12 dBm typical output power from 3.8 to 5.6 GHz. The Fo and 3 Fo isolations are +22 dBc with respect to the output signal level. This frequency multiplier features DC blocked I/Os, and is ideal for use in LO multiplier chains for Point-to-Point & VSAT radios yielding reduced parts count vs. traditional approaches. The HMC1096LP3E is compatible with surface mount manufacturing techniques.

Applications

Point-to-Point & VSAT Radios
Test Instrumentation
Military & Space

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 1

HMC1096LP3E: GaAs pHEMT MMIC X2 Active Frequency Multiplier, 3.8 - 5.6 GHz Output Data Sheet 08/24/2015

Show More

Reference Materials 1

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC1096LP3E	16-Lead QFN (3mm x 3mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC1096LP3ETR	16-Lead QFN (3mm x 3mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

HMC1096LP3E
Pin/Package Drawing
16-Lead QFN (3mm x 3mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC1096LP3ETR
Pin/Package Drawing
16-Lead QFN (3mm x 3mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Mar 29, 2023

- 22_0048

Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products

HMC1096LP3E

PRODUCTION

HMC1096LP3ETR

PRODUCTION

pdf

PCN22_0048_Form

xls

Material_Report

pdf

Qualification Results Summary

pdf

Detailed Change Description

Filter by Model

Part Models

Product Lifecycle

PCN

Mar 29, 2023

- 22_0048

Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products

HMC1096LP3E

PRODUCTION

HMC1096LP3ETR

PRODUCTION

pdf

PCN22_0048_Form

xls

Material_Report

pdf

Qualification Results Summary

pdf

Detailed Change Description

reference details image

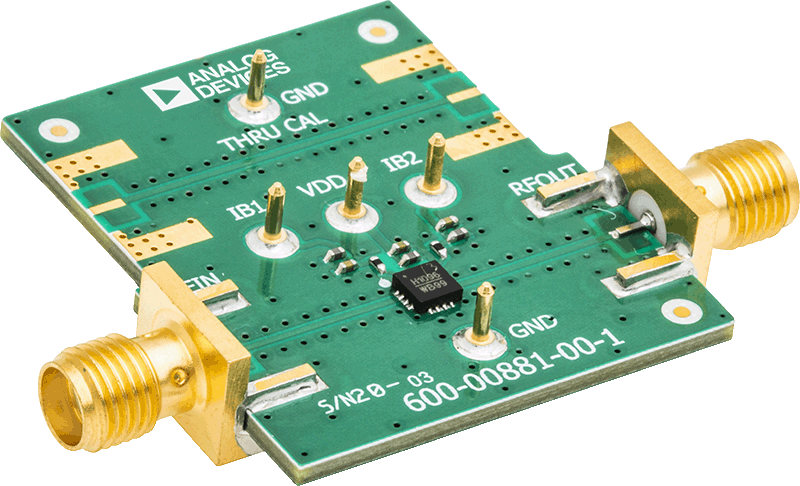

EVAL-HMC1096

HMC1096 Evaluation Board

EV1HMC1096LP3ANGLE-web

EV1HMC1096LP3BOTTOM-web

EV1HMC1096LP3TOP-web

HMC1096 Evaluation Board

Download

Print

EV1HMC1096LP3ANGLE-web

EV1HMC1096LP3BOTTOM-web

EV1HMC1096LP3TOP-web

EV1HMC1096LP3ANGLE-web

EV1HMC1096LP3BOTTOM-web

EV1HMC1096LP3TOP-web

EVAL-HMC1096

HMC1096 Evaluation Board

Buy Now View Details

Product Detail

This page contains ordering information for evaluating the HMC1096.

The Design Files link includes the BOM, schematics, and Gerber files for the evaluation board.

Resources

ZIP

HMC1096 Design Files

3.72 M

Show More

evaluation kit item images

EVAL-HMC1096

HMC1096 Evaluation Board

S-Parameter 1

Simulation Model

S-Parameter

HMC1096 S-Parameters

19.48 KB

3 Years Ago

RE: HMC1096 Input power Absolute maximum rating

View related discussion on EngineerZone

Tools & Simulations

Latest Discussions
