Features and Benefits
- Wide Input Bandwidth: 1 to 23 GHz
- Wide Dynamic Range:
50 dB up to 23 GHz
- Single Positive Supply: +3.3V
- Excellent Stability Over Temperature
- Fast Rise / Fall Time: 12 / 65 ns
- 16 Lead 3x3 mm SMT Package: 9mm²

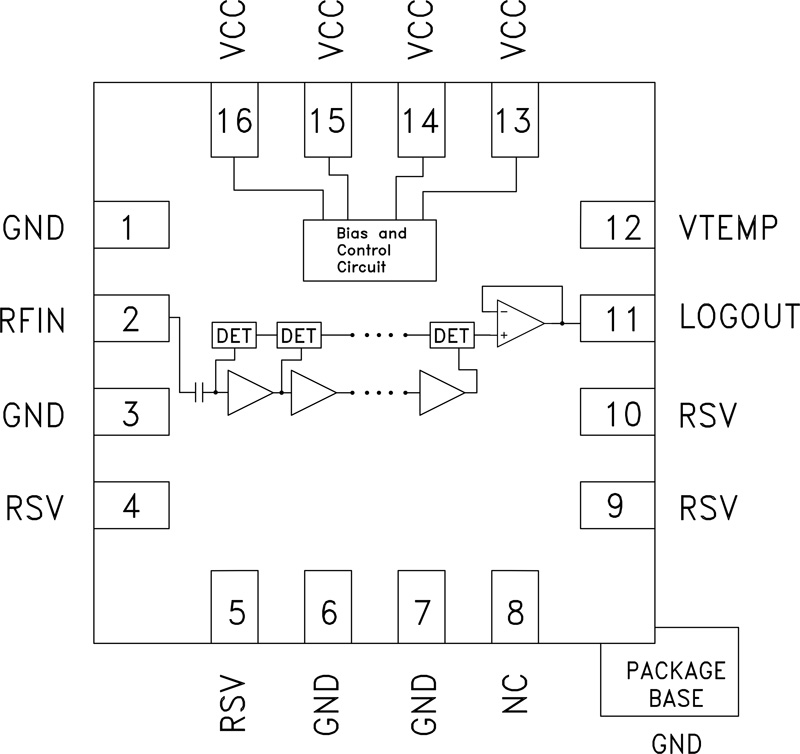

The HMC1094LP3E Logarithmic Detector converts RF signals at its input, to a proportional DC voltage at its output. The HMC1094LP3E employs successive compression topology which delivers high dynamic range over a wide input frequency range. As the input power is increased, successive amplifiers move into saturation one by one creating an approximation of the logarithm function. The output of a series of detectors is summed, converted into the voltage domain and buffered to drive the LOGOUT output. The HMC1094LP3E provides a nominal logarithmic slope of +18 mV/dB and an intercept of -113 dBm at 23 GHz. Ideal as a log detector for high volume microwave radio and VSAT applications, the HMC1094LP3E is housed in a compact 3x3 mm RoHS compliant SMT plastic package.
- Point-to-Point Microwave Radio
- Wideband Power Monitoring
- Receiver Signal Strength
- Test & Measurement
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
