Features and Benefits
- Broadband Single-Ended RF Input
- ±1 dB Detection Accuracy to 3.9 GHz
Input Dynamic Range:
-65 dBm to +7 dBm
RF Signal Wave Shape
& Crest Factor Independent
- Digitally Programmable
- Excellent Temperature Stability
- Power-Down Mode
- 24 Lead 4x4mm SMT Package: 16mm²

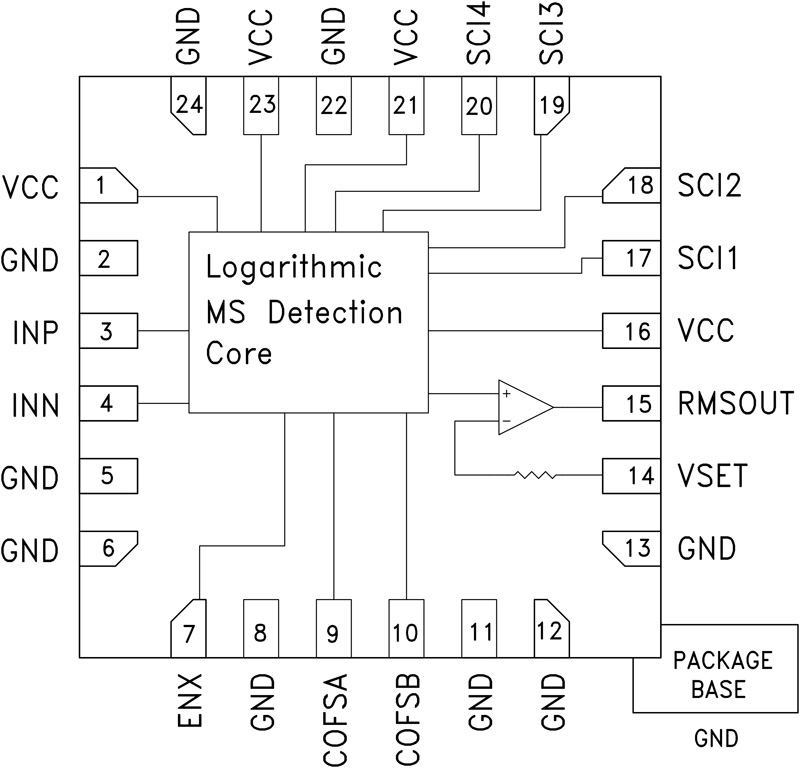

The HMC1020LP4E Power Detector is designed for RF power measurement and control applications for frequencies up to 3.9 GHz. The detector provides an accurate RMS representation of any broadband, single-ended RF/IF input signal. The output is a temperature compensated, monotonic representation of real signal power, measured with an input sensing range of 72 dB.
The HMC1020LP4E is ideally suited to those wide bandwidth, wide dynamic range applications requiring repeatable measurement of real signal power, especially where RF/IF wave shape and/or crest factor change with time.
The integration bandwidth of the HMC1020LP4E is digitally programmable with the use of input pins SCI1-4 over a range of more than 3 decades. This allows the user to dynamically set the operation bandwidth and also permits the detection of different types of modulations on the same platform.
HMC1020LP4E features an internal op-amp at output stage, which provides for slope / intercept adjustments and enables controller application.
- Log –> Root-Mean-Square
- Tx/Rx Signal Strength
Indication (TSSI / RSSI)
- RF Power Amplifier Efficiency Control
- Receiver Automatic Gain Control
- Transmitter Power Control
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
