HMC-C070

MicroSynth^® Integrated Synthesizer Module, 5.5 - 10.5 GHz

Obsolete

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Features

Extremely Compact, Broadband Synthesizer
24-Bit Step Size, 1.2 Hz Resolution
Auto & Triggered Sweeper Functions
Integrated Low Noise Voltage Regulators

Hermetic Module
Operating Temperature: -40°C to +85°C
Class 2 ESD Rating (2 kV)

Additional Details

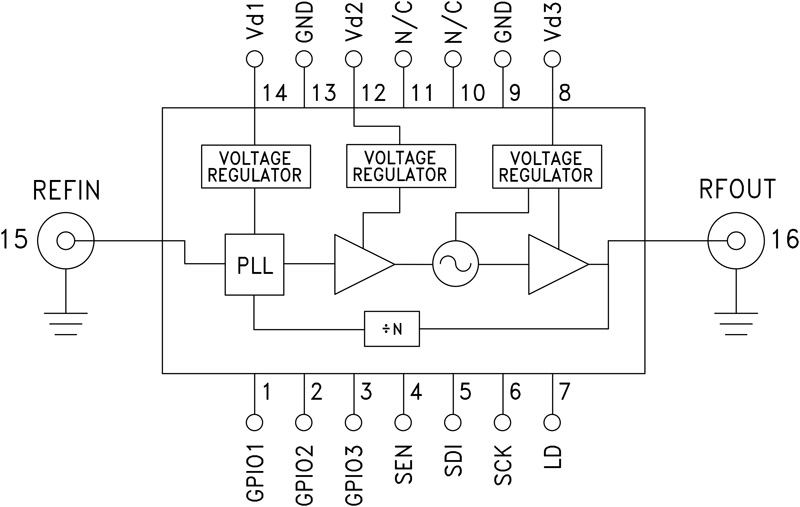

The HMC-C070 MicroSynth^® is a fully integrated broadband synthesizer module that combines high performance SiGe, GaAs pHEMT, and InGaP HBT technologies into one compact hermetic package. The output frequency range is 5.5 to 10.5 GHz with an average output power of +21 dBm, which is enough to drive two mixers. In fractional-N mode, the HMC-C070 can realize step sizes as low as 1.2 Hz. The HMC-C070 also features fully integrated low noise regulators and an output buffer amplifier which results in superior pushing and pulling performance. This module has been designed to withstand harsh environments and can be upscreened to higher military standards upon request.

Register File

The HMC-C070 MicroSynth^® requires initialization at turn-on in order to operate properly. The file HMC-C070_register.txt contains a hexadecimal list of registers and suggested initialization values that will cause the unit to operate at 8 GHz.

For theory of operation and register map refer to the MicroSynth^® Operating Guide.

Applications
