HMC-C050 Data Sheet4/22/2015
Overview
Features and Benefits
- Ultra Low Phase Noise: -160 dBc/Hz @ 10 kHz
- Noise Figure: 5 dB
- Gain: 13.5 dB
- Output IP3: +22.5 dBm
- 50 Ohm Matched Input/Output
- Single Supply Voltage: +5V
- Hermetically Sealed Module
- Field Replaceable SMA Connectors
- -55 to +85°C Operating Temperature
Product Details

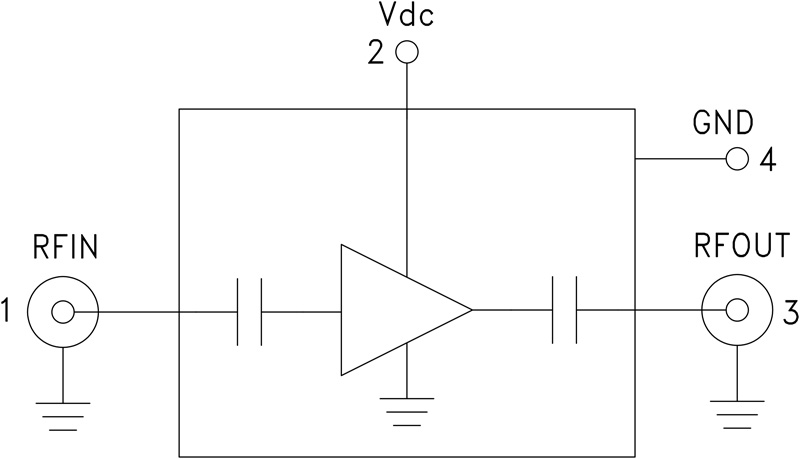

The HMC-C050 is a GaAs HBT Ultra Low Noise Amplifier in a miniature, hermetic module designed to operate between 2 and 18 GHz. This high dynamic range amplifier module provides 13.5 dB of gain, 5 dB noise figure and up to +22.5 dBm of OIP3 with a single supply of +5V. The ultra low phase noise contribution of -160 dBc/Hz, enables superior modulation accuracy within transceiver architectures. The wideband distributed amplifier I/Os are internally matched to 50 Ohms and DC blocked for robust performance. The module features removable SMA connectors which can be detached to allow direct connection of the I/O pins to a microstrip or coplanar circuit.
APPLICATIONS
- Microwave Radio
- Military & Space
- Test Instrumentation
- VSAT
Product Categories
Markets and Technologies
Product Lifecycle
Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
