Overview

Features and Benefits

  • Ultra Low SSB Phase Noise: -155 dBc/Hz
  • Very Wide Bandwidth
  • Output Power: -1 dBm
  • Single DC Supply: +5V @ 152mA
  • RoHS Compliant & Hermetically Sealed
  • Field Replaceable SMA Connectors
  • -55 to +85°C Operating Temperature

Product Details

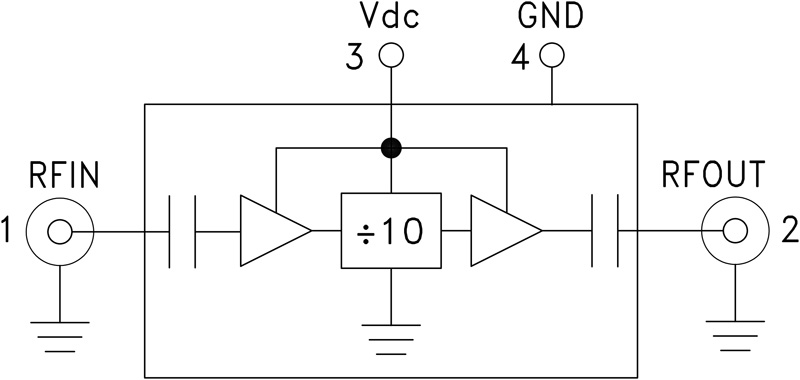

The HMC-C040 is a low noise Divide-by-10 Static Divider utilizing InGaP GaAs HBT technology packaged in a miniature, hermetic module with replaceable SMA connectors. This device operates from 0.5 to 17 GHz input frequency from a single +5V DC supply. The low additive SSB phase noise of -155 dBc/Hz at 100 kHz offset helps the user maintain excellent system noise performance.

Applications

  • Point-to-Point / Multi-Point Radios
  • VSAT Radios
  • Fiber Optic
  • Test Equipment
  • Military & Space

Product Lifecycle icon-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.
