  5. HMC-C017


Overview

Features and Benefits

  • Noise Figure: 2.75 dB
  • Gain: 18 dB
  • P1dB Output Power: +14 dBm
  • 50 Ohm Matched Input/Output
  • Regulated Supply: Vs= +8V to +16V
  • Hermetically Sealed Module
  • Field Replaceable 2.92mm Connectors
  • -55 to +85°C Operating Temperature

Product Details

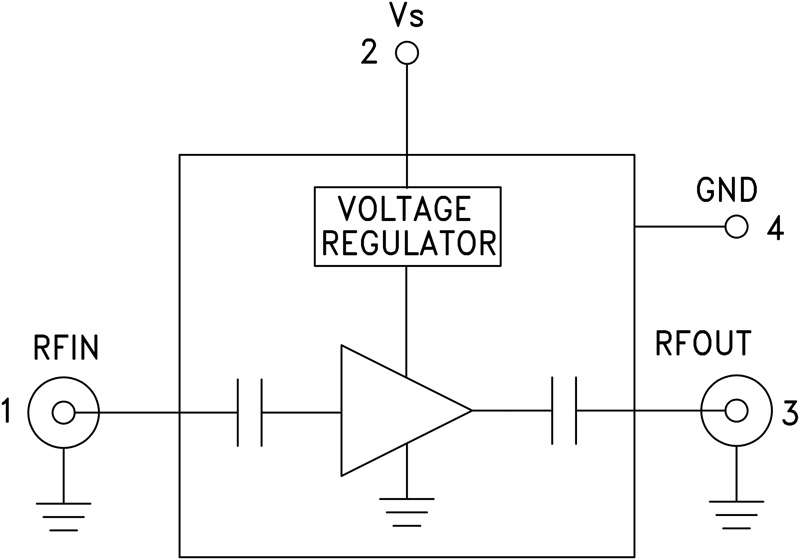

The HMC-C017 is a GaAs MMIC PHEMT Low Noise Amplifier in a miniature, hermetic module which operates between 17 and 27 GHz. This high dynamic range amplifier module provides 18 dB of gain, 2.75 dB noise figure and up to +25 dBm of output IP3 while the internal voltage regulator accepts a supply voltage from +8V to +16V. The wideband amplifier I/Os are internally matched to 50 Ohms and are internally DC blocked for robust performance. The module features removable coaxial connectors which can be detached to allow direct connection of the I/O pins to a microstrip or coplanar circuit.

Applications

  • Telecom Infrastructure
  • Microwave Radio & VSAT
  • Military & Space
  • Test Instrumentation
  • Fiber Optics

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
