HMC-C015

DBL-BAL Mixer Module, 24 - 38 GHz

Show More showmore-icon

warning : LAST TIME BUY tooltip
warning : LAST TIME BUY tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
S-Parameter HMC-C015 S-Parameters Download 34.73 KB
Part Models 1
1ku List Price
price unavailable
Features
  • Passive: No DC Bias Required
  • Input IP3: +20 dBm
  • LO/RF Isolation: 35 dB
  • Wide IF Bandwidth: DC - 8 GHz
  • Hermetically Sealed Module
  • Field Replaceable Coaxial Connectors
  • -55 to +85°C Operating Temperature
Additional Details
show more Icon

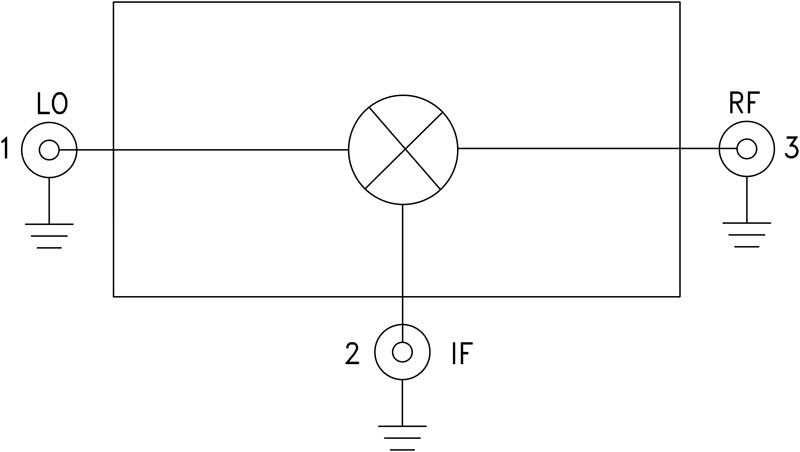

The HMC-C015 is a general purpose double-balanced mixer housed in a miniature hermetic module which can be used as an upconverter or downconverter between 24 and 38 GHz. This mixer requires no external components or matching circuitry. The HMC-C015 provides excellent, LO to RF, and LO to IF suppression due to optimized balun structures. The mixer operates with LO drive levels from +11 to +15 dBm and requires no DC bias. The HMC-C015 may also be used as a Bi-Phase Modulator/Demodulator or phase comparator. The module features removable coaxial connectors which can be detached to allow direct connection of the I/O pins to a microstrip or coplanar circuit.

APPLICATIONS

  • Telecom Infrastructure
  • Military Radio, Radar & ECM
  • Space Systems
  • Test Instrumentation
