Overview

Features and Benefits

  • Passive: No DC Bias Required
  • Input IP3: +19 dBm
  • LO/RF Isolation: 35 dB
  • Wide IF Bandwidth: DC - 8 GHz
  • Hermetically Sealed Module
  • Field Replaceable Coaxial Connectors
  • -55 to +85°C Operating Temperature

Product Details

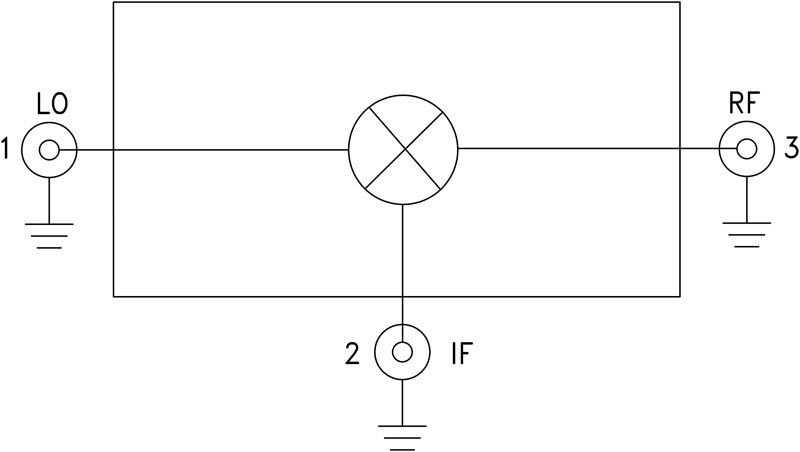

The HMC-C014 is a general purpose passive doublebalanced mixer housed in a miniature hermetic module that can be used as an upconverter or downconverter between 16 and 32 GHz. This mixer requires no external components or matching circuitry. The HMC-C014 provides excellent LO to RF and LO to IF suppression due to optimized balun structures.

The mixer operates with LO drive levels from +9 dBm to +15 dBm and requires no DC Bias. The HMC-C014 may also be used as a Bi-Phase Modulator/Demodulator or phase comparator. The module features removable coaxial connectors which can be detached to allow direct connection of the I/O pins to a microstrip or coplanar circuit.

Applications

  • Telecom Infrastructure
  • Military Radio, Radar & ECM
  • Space Systems
  • Test Instrumentation
