HMC-C010

600° Analog Phase Shifter Module, 6 - 15 GHz

Viewing:

Overview

Wide Bandwidth: 6 - 15 GHz
>600° Phase Shift
Single Positive Voltage Control

Hermetically Sealed Module
Field Replaceable SMA Connectors
-55 to +85 °C Operating Temperature

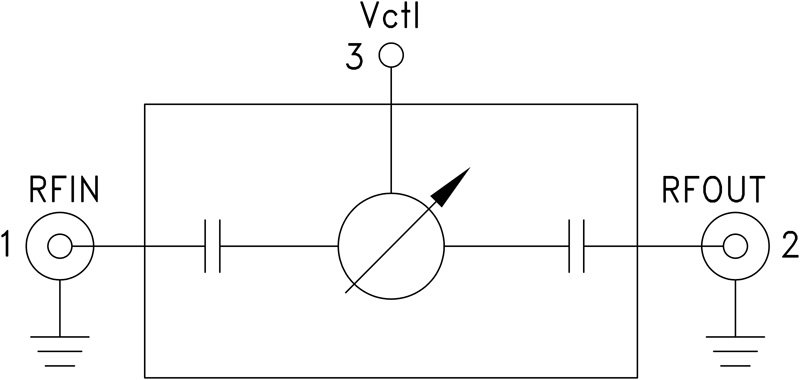

The HMC-C010 is an Analog Phase Shifter which is controlled via an analog control voltage from 0 to +5V. The HMC-C010 provides a continuously variable phase shift of 0 to 800 degrees at 6 GHz, and 0 to 450 degrees at 16 GHz, with consistent insertion loss versus phase shift. The phase shift is monotonic with respect to control voltage.

The control port has a modulation bandwidth of 50 MHz. The low insertion loss and extremely robust packaging enable this part to be used in a wide range of applications including the phase adjustment of clocks in fiber optic systems and test equipment. The HMC-C010 is housed in a miniature hermetic module with replaceable SMA connectors.
