Overview

Features and Benefits

  • Wide IF Bandwidth: DC - 3.5 GHz
  • Image Rejection: 35 dB
  • LO to RF Isolation: 40 dB
  • High Input IP3: +23 dBm
  • Hermetically Sealed Module
  • Field Replaceable 2.92 mm Connectors
  • −55 to +85°C Operating Temperature

Product Details

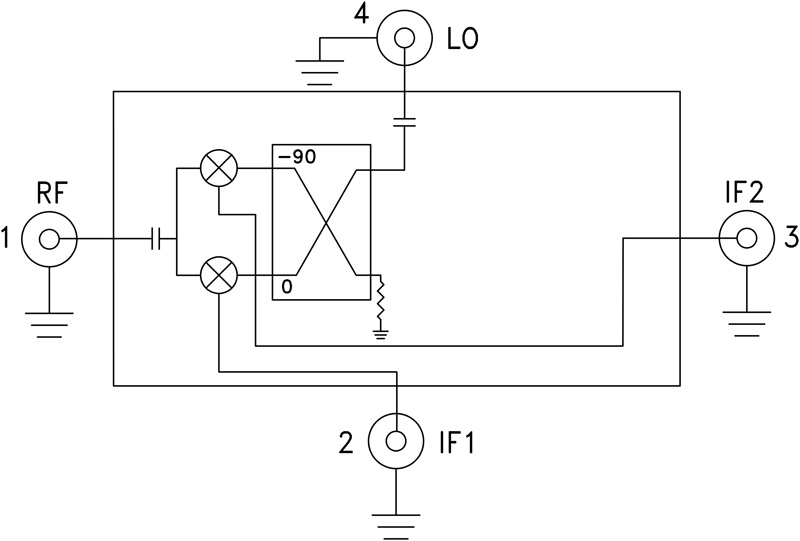

The HMC-C009 is a passive I/Q MMIC mixer housed in a miniature hermetic module which can be used as either an Image Reject Mixer or a Single Sideband Upconverter. The module utilizes two standard Hittite double balanced mixer cells and a 90 degree hybrid fabricated on a GaAs MESFET process. This MMIC based module is a more reliable and consistent alternative to hybrid style I/Q Mixers and Single Sideband Converter assemblies. The module features removable SMA connectors which can be detached to allow direct connection of the modules I/O pins to a microstrip or coplanar circuit.

APPLICATIONS

  • Telecommunications Equipment
  • Test Equipment
  • Military Radios, Radar & ECM
  • Space Systems

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Documentation & Resources

Tools & Simulations

S-Parameter

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
HMC-C009 Material Declaration Reliability Data Connectorized Hermetic Module (C-4)
Wafer Fabrication Data
