DS89C450

Ultra-High-Speed Flash Microcontrollers

Show More showmore-icon

Ultra-High-Speed Flash Microcontrollers Offer In-Application Programmable Flash Memory

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $14.78
Features
  • High-Speed 8051 Architecture
    • One Clock-Per-Machine Cycle
    • DC to 33MHz Operation
    • Single Cycle Instruction in 30ns
    • Optional Variable Length MOVX to Access Fast/Slow Peripherals
    • Dual Data Pointers with Automatic Increment/Decrement and Toggle Select
    • Supports Four Paged Memory-Access Modes
  • On-Chip Memory
    • 16kB/64kB Flash Memory
    • In-Application Programmable
    • In-System Programmable Through Serial Port
    • 1kB SRAM for MOVX
  • 80C52 Compatible
    • 8051 Pin and Instruction Set Compatible
    • Four Bidirectional, 8-Bit I/O Ports
    • Three 16-Bit Timer Counters
    • 256 Bytes Scratchpad RAM
  • Power-Management Mode
    • Programmable Clock Divider
    • Automatic Hardware and Software Exit
  • ROMSIZE Feature
    • Selects Internal Program Memory Size from 0 to 64kB
    • Allows Access to Entire External Memory Map
    • Dynamically Adjustable by Software
  • Peripheral Features
    • Two Full-Duplex Serial Ports
    • Programmable Watchdog Timer
    • 13 Interrupt Sources (Six External)
    • Five Levels of Interrupt Priority
    • Power-Fail Reset
    • Early Warning Power-Fail Interrupt
    • Electromagnetic Interference (EMI) Reduction
Additional Details
show more Icon

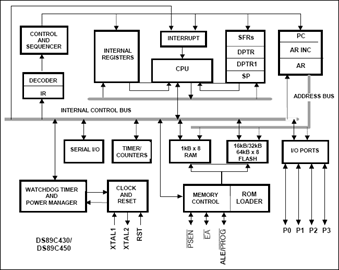

The DS89C430 and DS89C450 offer the highest performance available in 8051-compatible microcontrollers. They feature newly designed processor cores that execute instructions up to 12 times faster than the original 8051 at the same crystal speed. Typical applications will experience a speed improvement up to 10x. At 1 million instructions per second (MIPS) per megahertz, the microcontrollers achieve 33 MIPS performance from a maximum 33MHz clock rate.

The DS89C440 is a 32kB version of the DS89C450 that is no longer available. The DS89C450 can be used as a drop-in replacement.

Applications

  • Automated Test Equipment (ATE)
  • Building Energy Control and Management
  • Building Security and Door Access Control
  • Consumer Electronics
  • Data Logging
  • Gaming Equipment
  • HVAC
  • Industrial Control and Automation
  • Magstripe Reader/Scanner
  • Motor Control
  • Programmable Logic Controllers
  • Telephones
  • Uninterruptible Power Supplies
  • Vending
  • White Goods (Washers, Microwaves, Etc.)
Part Models 6
1ku List Price Starting From $14.78

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
DS89C450-ENG+
  • HTML
  • HTML
DS89C450-ENL+
  • HTML
  • HTML
DS89C450-MNG+
  • HTML
  • HTML
DS89C450-MNL+
  • HTML
  • HTML
DS89C450-QNG+
  • HTML
  • HTML
DS89C450-QNL+
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 29, 2021

- 2218C

ASSEMBLY

DS89C450-ENG+

PRODUCTION

DS89C450-ENL+

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 29, 2021

- 2218C

arrow down

ASSEMBLY

DS89C450-ENG+

PRODUCTION

DS89C450-ENL+

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

DS89C450-KIT

Evaluation Kit for the DS89C450

zoom

DS89C450-KIT

Evaluation Kit for the DS89C450

Evaluation Kit for the DS89C450

Features and Benefits

  • Easily Load Code Using Bootstrap Loader and Serial 0 Port (DB9, J2)
  • Two DB9 RS-232 Serial Connectors
  • DB9 Serial Cable
  • Two Internal Serial Ports
  • On-Board Power Supply Regulator
  • 128kB of On-Board Program + Data RAM
  • Preprogrammed Xilinx CPLD Handles Address Multiplexing and RAM Mapping
  • LED Display of Port 0 Levels
  • Pushbutton Switches for Reset and Interrupt Generation
  • Prototyping Area
  • Board Schematics Included to Provide a Convenient Reference Design

Product Detail

The DS89C450 evaluation kit (EV kit) is a proven platform to conveniently evaluate the capabilities of the ultra-high-speed flash microcontroller family. The kit contains the DS89C450 in a DIP-40 socket, 128kB of SRAM mapped through a preprogrammed CPLD, a power-supply regulator, two DB9 serial connectors, and switches and LEDs to control and display board operation. With the addition of a power supply and an RS-232 cable connected to a personal computer, the EV kit provides a completely functional system ideal for application development and debug.

The DS89C450 EV kit can also be used as a programming and development platform for the DS5000(T). Quick-start instructions and sample programs for the DS5000(T) can be obtained from the DS5000 directory on the software tool disk, or from Maxim technical support at https://support.maximintegrated.com/micro.
