DS28E17

1-Wire®-to-I2C Master Bridge

Show More showmore-icon

Extend I2C Slave Peripheral Communication Distance up to 100m

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $2.63
Features
  • Converts 1-Wire Communication Protocol to I2C Master I/O
    • Operates I2C Slave Peripherals over the Single-Contact, 1-Wire Interface
  • Extend I2C Communication Distance with 1-Wire Protocol
    • 100 Meters (typ) in Standard Speed for a Properly Configured Network
  • Flexible 1-Wire Slave and I2C Master Operational Modes
    • Supports 15kbps and 77kbps 1-Wire Protocol with Packetized I2C Data Payloads
    • Factory-Programmed, Unique 64-Bit 1-Wire ROM ID Provides Unalterable Serial Number to End Equipment
    • Standard 100kHz and 400kHz Communication Rates for I2C
    • I2C Clock Stretching Automatically Supported
  • Low Power Consumption
    • 0.3µA (typ) in Sleep Mode
    • 2.6mA (typ) when Operational
    • Separate Pins for Sleep and Wakeup Flexibility
    • Remote Power Controlled by an Awake Pin
    • Sleep Mode Enabled by Sleep Pin or a 1-Wire Device Command
  • Easy to Integrate
    • 3.3V(nom) Supply, Small 4mm x 4mm x 0.75mm TQFN package, -40°C to +85°C Operation
    • Evaluation HW and SW Available
Additional Details
show more Icon

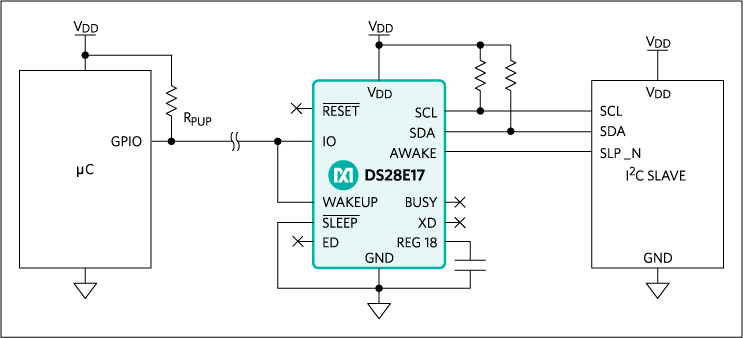

The DS28E17 is a 1-Wire slave to I2C master bridge device that interfaces directly to I2C slaves at standard (100kHz max) or fast (400kHz max). Data transfers serially by means of the 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS28E17 is guaranteed to have a unique 64-bit ROM registration number that serves as a node address in the 1-Wire network. Multiple DS28E17 devices can coexist with other devices in the 1-Wire network and be accessed individually without affecting other devices. The DS28E17 allows using complex I2C devices such as display controllers, ADCs, DACs, I2C sensors, etc. in a 1-Wire environment. Each self-timed DS28E17 provides 1-Wire access for a single I2C interface.

Applications

  • Accessory Identification and Control
  • ADCs/DACs
  • Display Controllers
  • I2C Sensors
Part Models 2
1ku List Price Starting From $2.63

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
DS28E17Q+
  • HTML
  • HTML
DS28E17Q+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 30, 2020

- 2098

ASSEMBLY

DS28E17Q+

PRODUCTION

DS28E17Q+T

PRODUCTION

Jan 17, 2018

- 1722C

ASSEMBLY

DS28E17Q+

PRODUCTION

DS28E17Q+T

PRODUCTION

Jun 20, 2016

- 1612

ASSEMBLY

DS28E17Q+

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 30, 2020

- 2098

arrow down

ASSEMBLY

DS28E17Q+

PRODUCTION

DS28E17Q+T

PRODUCTION

Jan 17, 2018

- 1722C

arrow down

ASSEMBLY

DS28E17Q+

PRODUCTION

DS28E17Q+T

PRODUCTION

Jun 20, 2016

- 1612

arrow down

ASSEMBLY

DS28E17Q+

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

DS28E17K

Evaluation System for DS28E17

zoom

DS28E17K

Evaluation System for DS28E17

Evaluation System for DS28E17

Features and Benefits

  • Driver Support for Windows 8 and Windows 7
  • Fully Compliant with USB Specification v2.0
  • USB Powered with No External Power Supply Required
  • On-Board DS7505 Digital Thermometer I2C Slave Peripheral
  • Extended I2C Peripheral Module Connector for Rapid Prototyping of I2C Slaves
  • Proven PCB Layout

Product Detail

The DS28E17 evaluation system (EV system) provides the special hardware and software system to exercise the features of the DS28E17 1-Wire®-to-I2C master bridge IC. The EV system consists of a DS28E17 EV kit board and a DS9481P-300# USB-to-1-Wire adapter for PC connectivity. The EV kit is compatible with Windows® operating systems.

Applications

  • Accessory Identification and Control
  • ADCs/DACs
  • Display Controllers
  • I²C Sensors
