DS28E10

1-Wire SHA-1 Authenticator

Show More showmore-icon

Provides Low-Cost, World-Class Authentication Security to Protect Your Development Investment

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $0.80
Features
  • Dedicated Hardware-Accelerated SHA-1 Engine for Generating SHA-1 MACs
  • One Page of 28-Byte User OTP EPROM
  • Irreversible Write Protection
  • Unique Factory-Programmed 64-Bit Identification Number
  • 1-Wire Interface for Standard and Overdrive Speeds
  • Communicates with Host at Up to 15.4kbps at Standard Speed or Up to 125kbps in Overdrive Mode
  • Operating Range from 2.8V to 3.6V, -40°C to +85°C
  • 3-Lead SOT23 and 6-Lead TSOC Packages
  • ±6kV Human Body Model (HBM) ESD Protection (typ) on the 1-Wire and VCC Pin
Additional Details
show more Icon

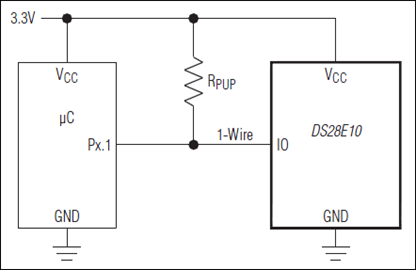

The DS28E10 combines secure challenge-and-response authentication functionality based on the FIPS 180-3 specified Secure Hash Algorithm (SHA-1) with 224 bits of one-time programmable user EPROM in a single chip. Once written, the memory is automatically write protected. Additionally, each device has its own guaranteed unique 64-bit ROM identification number (ROM ID) that is factory programmed into the chip. Memory writes are performed 4 bytes at a time. A secure and low-cost factory programming service is available to preprogram device data, including the SHA-1 security data components. The device communicates over the single-contact 1-Wire® bus. The communication follows the standard 1-Wire protocol with the ROM ID acting as node address in the case of a multidevice 1-Wire network.

Applications

  • Reference Design License Management
  • Sensor/Accessory Authentication and Calibration
  • System Intellectual Property Protection
Show More Arrow image
Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA). To request an NDA, click here.
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $0.80
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

DS28E10

Documentation

27
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • Technical Articles
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 05/05/2011
English

DS28E10: 1-Wire SHA-1 Authenticator Data Sheet (Rev.2)

Open PDF File

redirect
833.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 01/12/2023
English
DS28E10 Reliability Data redirect icon

36.10K

download

Download PDF

Technical Articles

23

PDF Vector

HTML

UPDATED 05/14/2012
English
How to Build a 1-Wire® Evaluation Kit redirect icon

PDF Vector

HTML

UPDATED 10/09/2012
Japanese
1-Wire®評価キットの構成方法 redirect icon

PDF Vector

HTML

UPDATED 05/30/2002
English
1-Wire Communication Through Software redirect icon

PDF Vector

HTML

UPDATED 09/16/2004
Chinese
用软件实现1-Wire®通信 redirect icon

PDF Vector

HTML

UPDATED 09/28/2004
Japanese
ソフトウェアを介した1-Wire通信 redirect icon

PDF Vector

HTML

UPDATED 12/22/2005
English
Protect Your R&D Investment with Secure Authentication redirect icon

PDF Vector

HTML

UPDATED 06/23/2006
Chinese
利用安全认证保护您的研发成果 redirect icon

PDF Vector

HTML

UPDATED 05/24/2006
Japanese
セキュア認証によるR&D投資の保護 redirect icon

PDF Vector

HTML

UPDATED 05/19/2005
English
White Paper 9: Are SHA-1 Devices Still Secure Enough? redirect icon

PDF Vector

HTML

UPDATED 09/16/2005
Chinese
白皮书9：SHA-1器件的安全性是否依然足够安全? redirect icon

PDF Vector

HTML

UPDATED 10/03/2005
Japanese
白書9：SHA-1デバイスは今でも十分にセキュア(安全)か? redirect icon

PDF Vector

HTML

UPDATED 09/10/2002
English
White Paper 8: 1-Wire® SHA-1 Overview redirect icon

PDF Vector

HTML

UPDATED 07/20/2004
Chinese
白皮书8: 1-Wire® SHA-1概述 redirect icon

PDF Vector

HTML

UPDATED 09/15/2004
Japanese
白書8：1-Wire® SHA-1の概要 redirect icon

PDF Vector

HTML

UPDATED 06/07/2002
English
White Paper 3: Why are 1-Wire SHA-1 Devices Secure? redirect icon

PDF Vector

HTML

UPDATED 12/23/2005
Chinese
白皮书3：为什么1-Wire SHA-1器件是安全的？ redirect icon

PDF Vector

HTML

UPDATED 12/01/2005
Japanese
白書3：1-Wire SHA-1デバイスはなぜ安全なのか redirect icon

PDF Vector

HTML

UPDATED 08/24/2009
English
Protect Your FPGA Against Piracy: Cost-Effective Authentication Scheme Protects IP in SRAM-Based FPGA Designs redirect icon

PDF Vector

HTML

UPDATED 01/05/2010
Chinese
防止FPGA设计被盗版：高性价比认证方案有效保护基于SRAM的FPGA设计IP redirect icon

PDF Vector

HTML

UPDATED 03/01/2010
Japanese
著作権侵害からのFPGAの保護：SRAMベースのFPGA設計のIPを保護するコスト効率に優れた認証方式 redirect icon

PDF Vector

HTML

UPDATED 06/21/2006
English
Xilinx® FPGA IFF Copy Protection with 1-Wire® SHA-1 Secure Memories redirect icon

PDF Vector

HTML

UPDATED 04/08/2009
Japanese
1-Wire® SHA-1セキュアメモリによるXilinx® FPGAのIFFコピー防止 redirect icon

PDF Vector

HTML

UPDATED 12/26/2006
Chinese
利用1-Wire®接口的SHA-1安全存储器实现Xilinx® FPGA的识别及防拷贝机制 redirect icon

Application Note

2

PDF Vector

HTML

UPDATED 09/21/2012
English
Understanding the DSSHA1 Synthesizable SHA-1 Coprocessor redirect icon

PDF Vector

HTML

UPDATED 12/05/2012
Japanese
論理合成可能SHA-1コプロセッサのDSSHA1の理解 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 11
show more Icon

Data Sheet 1

DS28E10: 1-Wire SHA-1 Authenticator Data Sheet (Rev.2)

Reliability Data 1

DS28E10 Reliability Data

Application Note 1

Understanding the DSSHA1 Synthesizable SHA-1 Coprocessor

Technical Articles 8

How to Build a 1-Wire® Evaluation Kit
1-Wire Communication Through Software
Protect Your R&D Investment with Secure Authentication
White Paper 9: Are SHA-1 Devices Still Secure Enough?
White Paper 8: 1-Wire® SHA-1 Overview
White Paper 3: Why are 1-Wire SHA-1 Devices Secure?
Protect Your FPGA Against Piracy: Cost-Effective Authentication Scheme Protects IP in SRAM-Based FPGA Designs
Xilinx® FPGA IFF Copy Protection with 1-Wire® SHA-1 Secure Memories

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
DS28E10P+ Thin Small-Outline C-Lead external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
DS28E10P+T Thin Small-Outline C-Lead external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
DS28E10R+T 3-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
DS28E10R+U 3-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 29, 2018

- 1703N

ASSEMBLY

DS28E10R+T

PRODUCTION

pdf

pcn_1703n

external-icon

Feb 4, 2015

- 1341_CANCELLATION

ASSEMBLY

DS28E10R+T

PRODUCTION

DS28E10R+U

PRODUCTION

pdf

pcn_1341_cancellation

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 29, 2018

- 1703N

arrow down

ASSEMBLY

DS28E10R+T

PRODUCTION

pdf

pcn_1703n

external-icon
Feb 4, 2015

- 1341_CANCELLATION

arrow down

ASSEMBLY

DS28E10R+T

PRODUCTION

DS28E10R+U

PRODUCTION

pdf

pcn_1341_cancellation

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

1-Wire Interface Products1
DS2482-100
popup image
Cart

PRODUCTION

Single-Channel 1-Wire Master

1-Wire Secure Authenticators1
DS28E02
popup image
Cart

PRODUCTION

1-Wire SHA-1 Authenticated 1Kb EEPROM with 1.8V Operation

Secure Microcontrollers1
DS2460
popup image
Cart

PRODUCTION

SHA-1 Coprocessor with EEPROM

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits 1

DS28E10EVKIT

Evaluation Kit for the DS28E10

zoom

DS28E10EVKIT

Evaluation Kit for the DS28E10

download icon

Download

 print icon

Print
DS28E10EVKIT
Evaluation Kit for the DS28E10

Features and Benefits

  • Enables Complete Evaluation of DS28E10 Functionality
  • Easy-to-Use Graphical Software to Exercise and Program the DS28E10
  • Easy-to-Use Hardware Components
  • Fully Compliant with the Hi-Speed USB 2.0 Specification
  • Driver Support for Windows® 7, Windows Vista®, and Windows XP®
  • USB-to-1-Wire Adapter Uses Both the Prolific PL-2303HXD and the Maxim DS2480B to Emulate a Virtual COM to 1-Wire® Port on Any PC
  • Accommodates DS28E10 TSOC Package
Buy Now View Details

Product Detail

The DS28E10 evaluation kit (EV kit) provides the hardware and software necessary to evaluate and program the DS28E10 1-Wire SHA-1 authenticator in an easy-to-use PC environment. The EV kit enables engineers to evaluate the DS28E10 for potential design purposes or to support end-product development activity. EV kit operation requires a host PC. The EV kit hardware includes a USB-to-1-Wire PC adapter to which an included DS28E10 evaluation board with IC socket is attached. An included RJ11 cable connects the evaluation board to the USB-to-1-Wire adapter. PC-based EV kit software is available. Additionally, the EV kit software requires an installation of Maxim's 1-Wire drivers, Microsoft .NET framework Version 2.0, and Prolific's PL-2303 USB-to-serial driver. Detailed instructions for downloading and installing these components are included in the EV kit data sheet. The EV kit also includes samples of the DS28E10 1-Wire SHA-1 authenticator.
