DS2482-100

Single-Channel 1-Wire Master

Show More showmore-icon

I²C to 1-Wire Bridge Device that Interfaces Directly to Standard (100kHz max) or Fast (400kHz max) I²C Masters to Perform Bidirectional Protocol Conversion Between the I²C Master and Any Downstream 1-Wire Slave Device

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $1.18
Features
  • Allows Easy Interface Between a I2C Microport and a 1-Wire Slave
    • I2C Host Interface Supports 100kHz and 400kHz I2C Communication Speeds
    • 1-Wire Master IO with Selectable Active or Passive 1-Wire Pullup
    • Provides Reset/Presence, 8-Bit, Single-Bit, and 3-Bit 1-Wire IO Sequences
    • Standard and Overdrive 1-Wire Communication Speeds
    • Two Address Inputs for I2C Address Assignment
  • Minimizes Line Noise Reducing System EMI
    • Slew-Controlled 1-Wire Edges
  • Supports EEPROMs, Temperature Sensors, or Other 1-Wire Slaves That Have Momentary High Source Current Modes
    • Strong 1-Wire Pullup Provided by an Internal Low-Impedance Signal Path
    • PCTLZ Output to Optionally Control an External MOSFET for Stronger Pullup Requirements
  • Operating Range: 2.9V to 5.5V, -40°C to +85°C
  • 8-Pin (150 mils) SO and 9-Bump WLP Packages
Additional Details
show more Icon

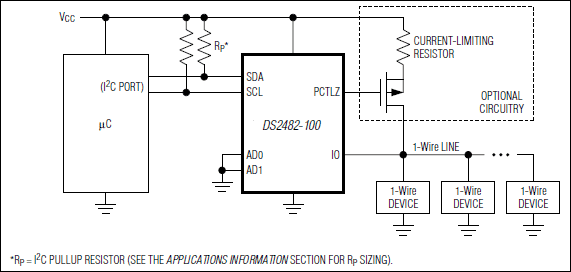

The DS2482-100 is an I²C to 1-Wire® bridge device that interfaces directly to standard (100kHz max) or fast (400kHz max) I²C masters to perform bidirectional protocol conversion between the I²C master and any downstream 1-Wire slave devices. Relative to any attached 1-Wire slave device, the DS2482-100 is a 1-Wire master. Internal factory trimmed timers relieve the system host processor from generating time-critical 1-Wire waveforms, supporting both standard and Overdrive 1-Wire communication speeds. To optimize 1-Wire waveform generation, the DS2482-100 performs slew rate control on rising and falling 1-Wire edges and provides additional programmable features to match drive characteristics to the 1-Wire slave environment. Programmable strong pullup features support 1-Wire power delivery to 1-Wire devices such as EEPROMs and sensors. The DS2482-100 combines these features with an output to control an external MOSFET for enhanced strong pullup application. The I²C slave address assignment is controlled by two binary address inputs, resolving potential conflicts with other I²C slave devices in the system.
