DS28E05
1-Wire EEPROM
Show More
Provides Low-Cost Identification or Calibration Solution for Sensors and Accessories with Efficient Single-Contact Operation
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Single-Contact 1-Wire Interface
- 112 Bytes User EEPROM with 1K Write Cycles
- Programmable Write Protection and OTP EPROM Emulation Modes for User Memory
- Unique Factory-Programmed 64-Bit ROM ID Number
- Communicates with Host at Up to 76.9kbps (Overdrive Only)
- Operating Range: 1.71V to 3.63V, -40°C to +85°C
- ±8kV HBM ESD Protection (typ) on IO Pin
- 4-Ball UCSP, 2-Pad SFN, 3-Pin SOT23 and 6-Pin TSOC Packages
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

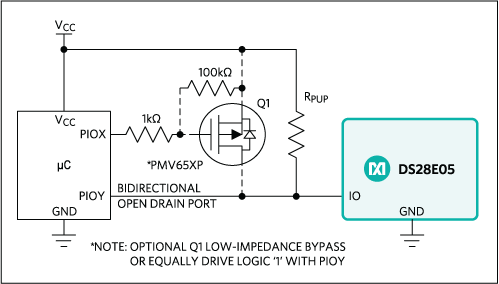

The DS28E05 is a 112-byte user-programmable EEPROM organized as 7 pages of 16 bytes each. Memory pages can be individually set to write protected or EPROM emulation mode through protection byte settings. Each part has its own guaranteed unique 64-bit ROM identification number (ROM ID) that is factory programmed into the chip. The DS28E05 communicates over Maxim Integrated's single contact 1-Wire® interface at overdrive speed with the ROM ID acting as node address in the case of a multiple-device 1-Wire network.
Applications
- Accessory/PCB Identification
- Aftermarket Management of Consumables
- Analog Sensor Calibration
- Medical Sensor Calibration Data Storage
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
DS28E05
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Reliability Data
-
User Guide
-
Design Note
-
Application Note
-
All
-
English
-
Chinese
-
Japanese
Reliability Data
1
23.81K
User Guide
1
856.00K
Design Note
10
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Application Note
4
HTML
HTML
HTML
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Application Note 2
Design Note 5
Smart Cable Aids Quality Control and Authentication
Implementing Nonvolatile, Nonresettable Counters for Embedded Systems
Add Control, Memory, Security, and Mixed-Signal Functions with a Single Contact
Transition Guide: Replacing the DS2430A with the DS2431
Wirelessly Powering and Accessing a 1-Wire Network
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| DS28E05GB+T |
Single-Row Flatpack, No Leads
|
|
|
| DS28E05GB+U |
Single-Row Flatpack, No Leads
|
|
|
| DS28E05P+ |
Thin Small-Outline C-Lead
|
|
|
| DS28E05P+T |
Thin Small-Outline C-Lead
|
|
|
| DS28E05R+T |
3-SOT_23-N/A
|
|
|
| DS28E05R+U |
3-SOT_23-N/A
|
|
|
| DS28E05X+U |
N/A
|
|
|
| DS28E05X-S+T |
N/A
|
|
- DS28E05GB+T
- Pin/Package Drawing
-
Single-Row Flatpack, No Leads
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- DS28E05GB+U
- Pin/Package Drawing
-
Single-Row Flatpack, No Leads
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- DS28E05P+
- Pin/Package Drawing
-
Thin Small-Outline C-Lead
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- DS28E05P+T
- Pin/Package Drawing
-
Thin Small-Outline C-Lead
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- DS28E05R+T
- Pin/Package Drawing
-
3-SOT_23-N/A
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- DS28E05R+U
- Pin/Package Drawing
-
3-SOT_23-N/A
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- DS28E05X+U
- Pin/Package Drawing
-
N/A
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- DS28E05X-S+T
- Pin/Package Drawing
-
N/A
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 29, 2018
- 1703N
ASSEMBLY
DS28E05R+T
PRODUCTION
Feb 4, 2015
- 1341_CANCELLATION
ASSEMBLY
DS28E05R+T
PRODUCTION
DS28E05R+U
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 29, 2018
- 1703N
ASSEMBLY
Feb 4, 2015
- 1341_CANCELLATION
ASSEMBLY
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
1-Wire Memory (EPROM, EEPROM, ROM)1 |
||||
|
PRODUCTION |
1024-Bit 1-Wire EEPROM |
|||
|
1-Wire Secure Authenticators1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
DeepCover Secure Authenticator with 1-Wire SHA-256 and 512-Bit User EEPROM |
|||
|
Product1 |
||||
|
NOT RECOMMENDED FOR NEW DESIGNS |
Single-Channel 1-Wire Master with Adjustable Timing and Sleep Mode |
|||
Evaluation Kits 1
DS28E05EVKIT
Evaluation Kit for the DS28E05
Features and Benefits
- Driver Support for Windows 8, Windows 7, Windows Vista, and Windows XP
- Fully Compliant with USB Specification v2.0
- USB Powered with No External Power Supply Required
- USB to 1-Wire Adapter Utilizes Both the Prolific PL-2303HXD and the Maxim DS2480B Emulator to Create a Virtual COM-to-1-Wire Port on Any PC
- Accommodates TSOC Package IC
Product Detail
The DS28E05 evaluation kit (EV Kit) provides the hardware and software necessary to evaluate and program the DS28E05 1-Wire EEPROM. EV Kit operation requires a host PC for user-friendly evaluation.
This evaluation system includes a DS9481R-3C7 USB to 1-Wire PC adapter, a DS9120P+ evaluation socket board for a TSOC DS28E05, and five DS28E05 sample devices in a TSOC package. The EV software runs on Windows® 8, Windows 7, Windows Vista®, and Windows XP® operating systems. Detailed instructions for downloading and installing software, as well as general EV system operation are included in the EV kit data sheet.
