DS2788
Stand-Alone Fuel-Gauge IC with LED Display Drivers
The Industry's Smallest Stand-Alone Fuel Gauge That Integrates LED Display Drivers and a Pushbutton Input for Multiple Li+ Batteries
Top
Overview
Features and Benefits
- Five 30mA Open-Drain Drivers for Driving LED Fuel-Gauge Display
- Debounced Fuel-Gauge Display Enable
- Internal Voltage Measurement Gain Register for Trimming External Voltage-Divider
- Pin for Driving FETs to Enable Voltage-Divider Only During Voltage Measurement, Conserving Power
- Precision Voltage, Temperature, and Current Measurement System
- Accurate, Temperature-Stable, Internal Time Base
- Absolute and Relative Capacity Estimated from Coulomb Count, Discharge Rate, Temperature, and Battery Cell Characteristics
- Accurate Warning of Low Battery Conditions
- Automatic Backup of Coulomb Count and Age Estimation to Nonvolatile (NV) EEPROM
- Gain and Tempco Calibration Allows the Use of Low-Cost Sense Resistors
- 24-Byte Battery/Application Parameter EEPROM
- 16-Byte User EEPROM
- Unique ID and Multidrop 1-Wire® Interface
- 14-Pin TSSOP Package
Product Details

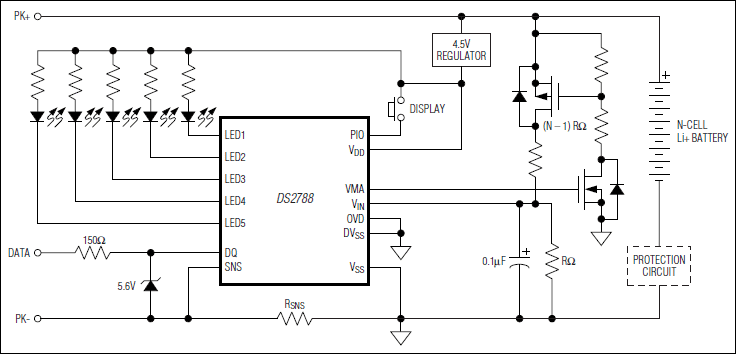

The DS2788 measures voltage, temperature, and current, and estimates available capacity for rechargeable lithium-ion (Li+) and Li+ polymer batteries. Cell characteristics and application parameters used in the calculations are stored in on-chip EEPROM. The available capacity registers report a conservative estimate of the amount of charge that can be removed given the current temperature, discharge rate, stored charge, and application parameters. Capacity estimation is reported in mAh remaining and percentage of full.
LED display drivers and a debounced input make display of the capacity information easy. The LED pins can directly sink current, requiring only a resistor for setting the current in the LED display, thus reducing space and cost.
Applications
- Digital Cameras
- Electric Bicycles
- Electric Vehicles
- Power Tools
- Uninterruptible Power Supply
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
