DG1208

RECOMMENDED FOR NEW DESIGNS

Low-Leakage, Single 8-Channel and Dual 4-Channel, Analog Multiplexer

With an Average of 1nA of Leakage, Our Low Leakage Muxes are Ideal for High Precision Circuits

Data Sheet (Rev. 1) Product Selection Table
Viewing:

Overview

  • Distortion-Free Measurement
    • 100Ω (typ) On Resistance
    • ≤ 1nA (max) On/Off-Leakage Current at +85°C
    • ≤ 0.5pC (typ) Charge Injection
  • Wide Supply Range with Low Supply Current
    • 40µA (typ) Quiescent Current at Room Temperature
    • Fully Specified with ±15V Bipolar Supplies or +12V Single Supply
    • Rail-to-Rail Operation
  • Flexible Design Option
    • GPIO-Compatible Control Inputs
    • EN Input to Enable/Disable Device
    • Available in both 16-TQFN and 16-TSSOP Packages
    • -40°C to +85°C Temperature Range

The DG1208 and DG1209 are low-leakage, low-charge injection, single 8-channel or dual 4-channel multiplexing switch devices. The DG1208 uses three selection inputs A2, A1, and A0 to determine the switching logic; the DG1209 uses two selection inputs A1 and A0. On both devices, an enable (EN) input is used to enable or disable the device.

The low capacitance and low charge injection of the DG1208/DG1209 make them ideal for automatic test equipment systems, data acquisition systems and sample-and- hold systems where low glitch and fast settling time are required.

The DG1208/DG1209 are available in 4mm x 4mm 16-lead TQFN or 16-lead TSSOP packages. The devices are specified for operation over the -40°C to +85°C temperature range.

Applications

  • Automatic Test Equipment Systems
  • Data Acquisition Systems
  • Sample-and-Hold Systems
  • Communication Systems
  • Audio and Video Routing
DG1208
Low-Leakage, Single 8-Channel and Dual 4-Channel, Analog Multiplexer
DG1208, DG1209: Typical Application Circuit
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
ADG1208
PRODUCTION Low Capacitance, 8-Channel, ±15 V/+12 V iCMOS® Multiplexer
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

IBIS Model 1

Evaluation Kits

eval board
schematic 1
DG1209EVKIT

Evaluation Kit for the DG1208/DG1209

Buy Now View Details

Features and Benefits

  • SMA Connectors for Analog Inputs and Outputs
  • Jumpers at Enable and Address Selection Inputs for Easy Configuration
  • Test Points for All Digital and Analog Signals
  • Fully Assembled and Tested
  • Proven PCB Layout

Product Details

The DG1208/DG1209 evaluation kits (EV kits) provide a proven design to evaluate the DG1208/DG1209, low-leakage and low-charge-injection multiplexer devices. The DG1208EVKIT# and DG1209EVKIT# are fully assembled and tested, and come populated with the DG1208EUE+ and DG1209EUE+ multiplexers, respectively. The DG1208 is a single 8-to-1 multiplexing device; the DG1209 is a dual 4-to-1 device. Both multiplexer devices are available in 4mm x 4mm 16-lead TQFN or 16-lead TSSOP packages.

Applications

  • Audio and Video Routing
  • Automatic Test Equipment Systems
  • Communication Systems
  • Data Acquisition Systems
  • Sample-and-Hold Systems

eval board
schematic 2
DG1208EVKIT

Evaluation Kit for the DG1208/DG1209

Buy Now View Details

Features and Benefits

  • SMA Connectors for Analog Inputs and Outputs
  • Jumpers at Enable and Address Selection Inputs for Easy Configuration
  • Test Points for All Digital and Analog Signals
  • Fully Assembled and Tested
  • Proven PCB Layout

Product Details

The DG1208/DG1209 evaluation kits (EV kits) provide a proven design to evaluate the DG1208/DG1209, low-leakage and low-charge-injection multiplexer devices. The DG1208EVKIT# and DG1209EVKIT# are fully assembled and tested, and come populated with the DG1208EUE+ and DG1209EUE+ multiplexers, respectively. The DG1208 is a single 8-to-1 multiplexing device; the DG1209 is a dual 4-to-1 device. Both multiplexer devices are available in 4mm x 4mm 16-lead TQFN or 16-lead TSSOP packages.

Applications

  • Audio and Video Routing
  • Automatic Test Equipment Systems
  • Communication Systems
  • Data Acquisition Systems
  • Sample-and-Hold Systems
DG1209EVKIT
Evaluation Kit for the DG1208/DG1209

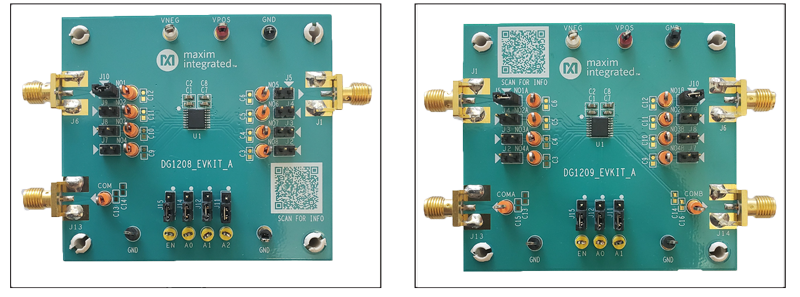

DG1208EVKIT, DG1209EVKIT: Board Photo title=
DG1208EVKIT
Evaluation Kit for the DG1208/DG1209

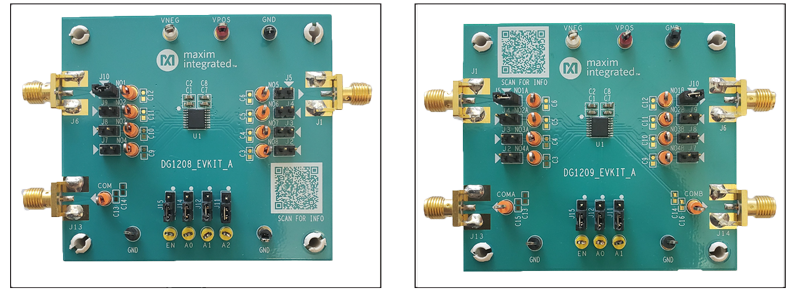

DG1208EVKIT, DG1209EVKIT: Board Photo title=
