DAC100S

PRODUCTION

Aerospace 10-Bit Current Output DAC

Data Sheet (Rev. F) Product Selection Table

Part Models: 1
1ku List Price: Starting From $3532.77

Viewing:

Overview

Fast Settling Time: 375nsec

Stable Tempco
Wide Supply Range: ±6V to ±18V

The DAC-100 is a complete 10-bit resolution digital-to-analog converter constructed on two monolithic chips in a single 16-pin CERDIP. Featuring excellent linearity vs. temperature performance, the DAC-100 includes a low tempco voltage reference, ten current source/switches and a high stability thin-film R-2R ladder network. Maximum application flexibility is provided by the fast current output. Resistors are included for use with an external op amp for voltage output applications.

Part Models: 1
1ku List Price: Starting From $3532.77

Documentation

Data Sheet 1

DAC100S: 10-Bit Current Output D to A Converter Aerospace Data Sheet (Rev.F) 05/13/2008

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

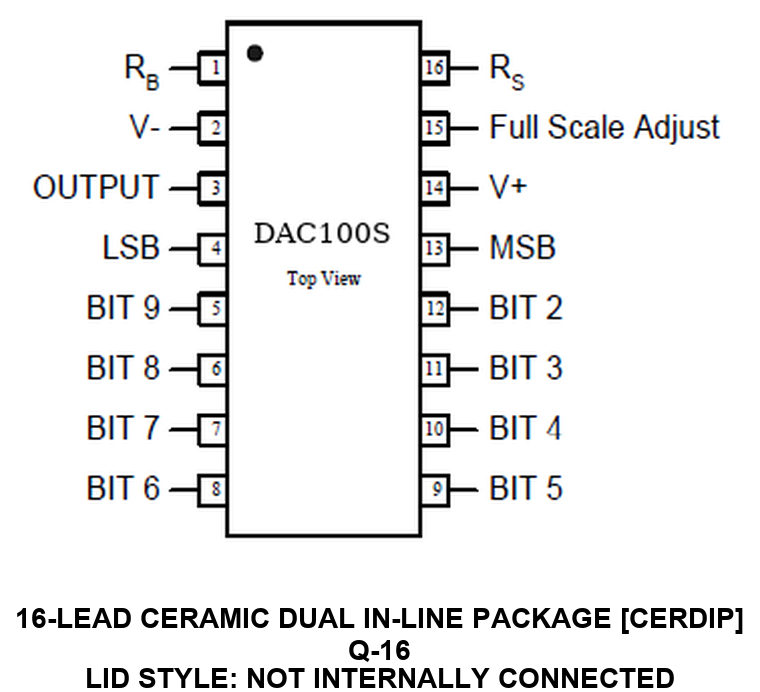

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
DAC1000713Q	16-Lead CerDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 30, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
		PCN16_0026_Form Material_Report Qualification Results Summary
DAC1000713Q	PRODUCTION
Nov 18, 2015 - 15_0219 Laser Marking Standardization for Aerospace Packages
		PCN15_0219_Form Material_Report Qualification Results Summary
DAC1000713Q	PRODUCTION
Oct 2, 2013 - 13_0163 Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices
		PCN13_0163_Form Material_Report Qualification Plan Summary
DAC1000713Q	PRODUCTION
Nov 7, 2012 - 12_0199 Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.
		PCN12_0199_Form Material_Report Qualification Report Summary Datasheet Specification Comparison
DAC1000713Q	PRODUCTION
Nov 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
		PCN11_0050_Form Material_Report
DAC1000713Q	PRODUCTION	PCN11_0050_Form Material_Report
Nov 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
DAC1000713Q	PRODUCTION	PCN11_0182_Form Material_Report
Feb 9, 2009 - 08_0073 Change of Seal Glass Material for Cerdip & Cerpak Packages
		08_0073AQualPlan Material_Report PCN08_0073_Form
DAC1000713Q	PRODUCTION	08_0073AQualPlan Material_Report PCN08_0073_Form

This is the most up-to-date revision of the Data Sheet.
